CNC Machining Center Brand Atrump

CNC Machining Center Brand Atrump

Atrump E422 CNC Machining Center Specification Table 18.8” x 48.8” Longitudinal travel (X-axis) 41.7" Cross travel (Y-axis) 22" Vertical travel (Z axis) 24" Spindle nose to table top (D) 4.8" ~ 28.9" Spindle center to column front surface 23.6" Spindle taper BT40 or CAT40 Spindle speed 6000 rpm Load capacity 2000 lbs Transmission of spindle & motor Belts   Motor Spindle motor/max torque 10 HP Servo motors on XYZ 1 kW-AC Coolant pump 1/4 HP Lubrication pump 150 W Power requirement 17 KVA, 3 Phase 208V to 230V (Max) Feed Rate Rapid feed rate 320 ipm AC Cutting feed rate 160 ipm AC Automatic Tool Changer No, of tools 16 Max tool diameter 3.54" Max tool weight 15.4"   Dimension & Weight Length x width
Call Seller for Quote
Model: E422

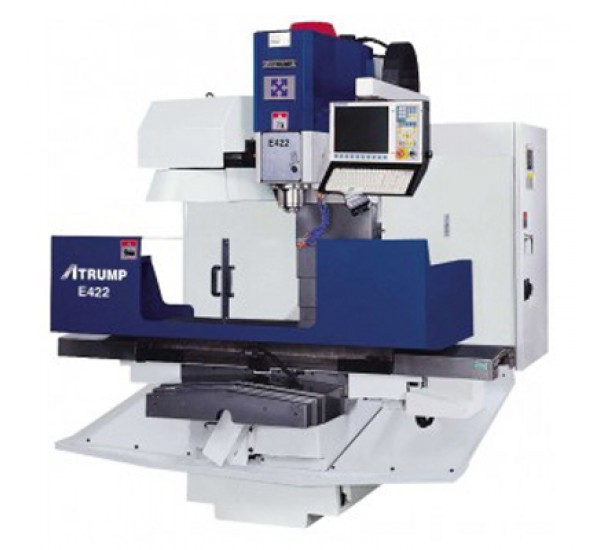

Atrump E422 CNC Machining Center


Specification
Table 18.8” x 48.8”
Longitudinal travel (X-axis) 41.7"
Cross travel (Y-axis) 22"
Vertical travel (Z axis) 24"
Spindle nose to table top (D) 4.8" ~ 28.9"
Spindle center to column front surface 23.6"
Spindle taper BT40 or CAT40
Spindle speed 6000 rpm
Load capacity 2000 lbs
Transmission of spindle & motor Belts



Motor
Spindle motor/max torque 10 HP
Servo motors on XYZ 1 kW-AC
Coolant pump 1/4 HP
Lubrication pump 150 W
Power requirement 17 KVA, 3 Phase 208V to 230V (Max)
Feed Rate
Rapid feed rate 320 ipm AC
Cutting feed rate 160 ipm AC
Automatic Tool Changer
No, of tools 16
Max tool diameter 3.54"
Max tool weight 15.4"



Dimension & Weight
Length x width x height 98" x 90" x 90"
Net weight 9460 lbs
