Manual Swivel Vise Mitering

Manual Swivel Vise Mitering

Heavy-duty hydraulic cylinder with precision ground hinge support. 2 hp motor, heavy-duty reducer, & variable step drive assembly
Call Seller for Quote
Model: MH-1016JA/SH-1016JA
Company Information
Name : PACIFIC MERCURY CO.,LTD
Contact : สุทธิพร อิทธิหิรัญวงศ์
Tel : 025397989

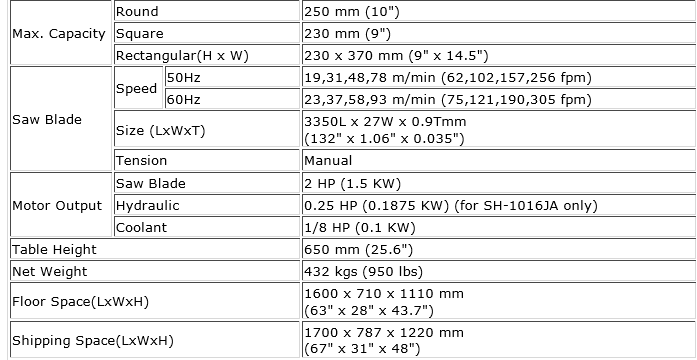

Specification


Machine Features

Structure

    • Heavy-duty hydraulic cylinder with precision ground hinge support

    • Cast iron quick set up vise

    • Large rugged base with built-in coolant & hydraulic system

Blade Drive

    • 2 hp motor, heavy-duty reducer, & variable step drive assembly

    • 4-speed transmission with the best worm gear and shaft

Blade Guidance & Lubrication System

    • Carbide blade guides with roller bearings

    • Two additional bearings to support blade from the top

    • Rigid guide arms mounted on extra wide precision ground dovetail slide

    • Integral coolant system

    • Blade brush

Control & Automation

    • Down feed rate & cutting pressure control via hydraulic down feed valve

    • Conveniently designed control station at chest level

Material Feeding & Clamping

    • Cast iron vises

    • Secure clamping via dependable manual lead screw system

    • Anti-slip hand wheel

Safety

    • Conduits protection measure

    • Orange alert safety design

Standard Accessories

    • Easy blade change with front access at waist level

    • Bi-metal saw blade

    • Tool box, leveling pads, and an additional wire brush

    • Operation & parts manual

*All designs and specifications are subject to change without notice or obligation

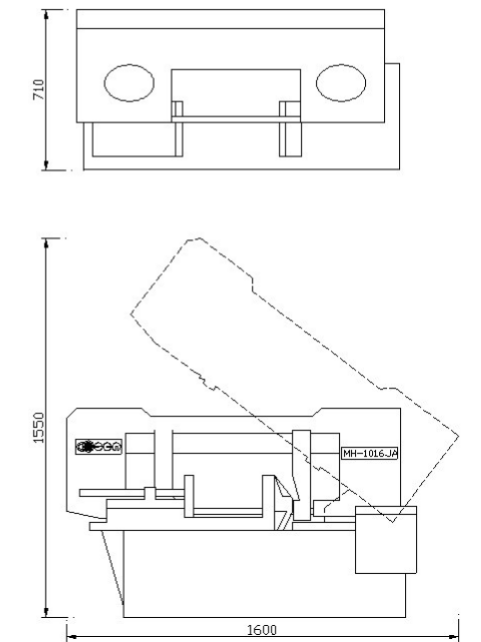

Floor plan
