Realizing CC-Link IE communication using general-purpose Ethernet on field network applicable to small-scale equipment

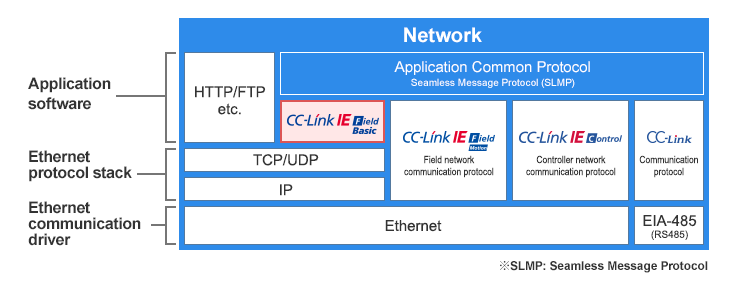

CC-Link IE communication using general-purpose Ethernet technology which can be easily applied to small-scale equipment not requiring high-speed control and is easy to use and develop. Realizing cyclic communication on the CC-Link IE field network by software.
Cyclic communication on CC-Link IE field network is realized by software.
- The system can be developed easily, and a wide lineup of applicable devices can be provided earlier.
The communication can be done simultaneously with standard Ethernet TCP/IP communication (HTTP, FTP, etc.).
- Wiring for control is not required, and the Ethernet network can be unified.
The master station can be easily realized on IPC or personal computer.
- The master station can be realized without a dedicated interface board.
*Cyclic communication is implemented as application software on Ethernet based on sample source code.
A field network system compatible with standard Ethernet communication can be constructed at low cost.
