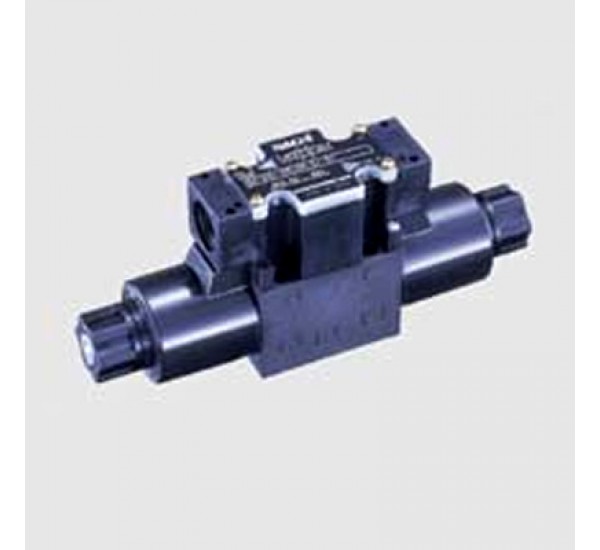

NACHI SS Series Wet Type Solenoid Operated Directional Control Valve (G03)

NACHI SS Series Wet Type Solenoid Operated Directional Control Valve (G03)

Valves Features

1. Recognized by reliable overseas safety standards such as CE (Europe), UL (U.S.A.) and CSA (Canada).
2. The power consumption of the DC solenoid (D* and E*) is reduced. This will further promote your energy saving policy.
3. An innovative fluid reaction compensating mechanism assures reliable valve switching. (Patent pending)
4. An expanded wiring space ensures easy wiring.
5. Redesigned terminal box improves waterproof properties.
   The terminal block has been modified to improve the insulation performance. (Conforms to overseas standards)
6. Interchangeable with conventional products (30 designs)
   The valve proper as well as such parts as a centralized terminal box and coil are interchangeable with the conventional ones in terms of a kit.

Valves Specifications

Type		Standard type		Shock-less type
JIS symbol	Operation symbol	Max.working pressure MPa {kgf/cm2}	Max.flow L/min	Max. working pressure MPa {kgf/cm2}	Max. flow rate L/min
	A2X	35 {357}	30	25 {255}	30
	H2X
	E2X
	A3X		80		50
	H3X
	E3X		100
	A3Z		65
	H3Z
	E3Z
	A5		100
	H5
	C2
	C5
	C9
	C1S
	C6S
	C1		AC Solenoid 65 DC Solenoid 80
	C6
	A4		50		50
	H4
	C4
	C7Y				40
	C8
