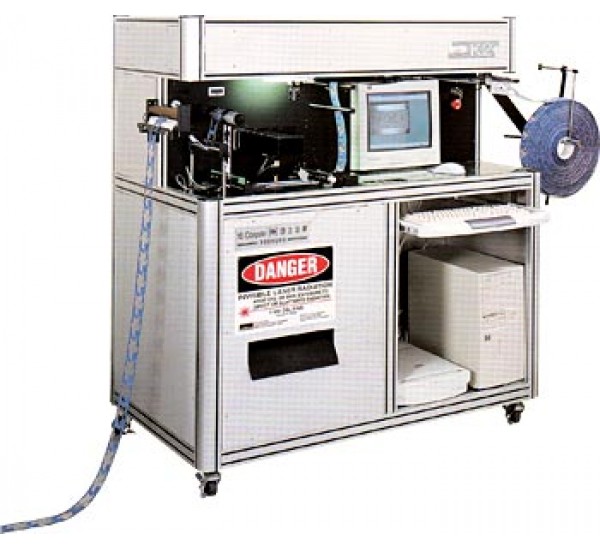

LASER CUTTING MACHINE

LASER CUTTING MACHINE : K2

• 50W, 100W CO2 SEALED WATER COOLING LASER BEAM

• PERCISION BALL SCREWS DRIVER SYSTEM

• MAX CUTTING AREA 180mm x 220mm

• MAX CUTTING SPEED : 20cm/SEC.

• POSITION SYSTEM : COLOR CCD CAMERA

• COMPUTER : PENTIUM,15 COLOR MONITOR, SCANNER

• DIMENSION :200L x 80W x 153H(cm)

• WEIGH : 200kg.

• POWER : 220V / 50-60Hz, 10A MAX

SPECIAL CHARACTERISTICS

• AC serve motor feeding system, fast and accurate.

• Color CCD picture capture and compare with computer for position and adjust the shift automatically, no disturbance if indented length of label.

• High efficiency high frequency sealed type laser, cooled by chiller, stable laser power and long lasting.

• Computer system direct linkage, Chinese & English operation interface with the following feature:
  - Voice prompt system which can be recorded by oneself.
  - Cutting sharp can be twisted and change shape and the size by computer directly in order to match with the instability of label production.
  - The cutting rate can be controlled directly by computer.
  - Define different cutting rate at the different thickness of same label and cutting power.

• Precise one formation driving machinery, especially long life, high accuracy.

• Air nozzle is included in the cutting line, ensure optimal cutting quality.

• Pneumatic holder to balance the tension which caused by cutting label.

• Match with different option fixture and can serve as label cutter machine.
