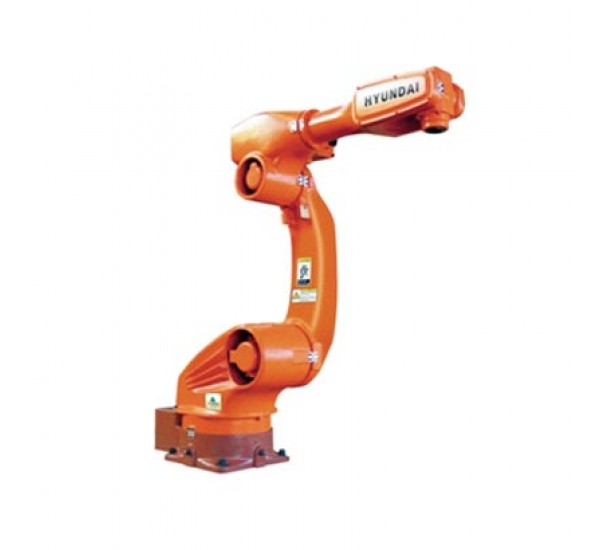

Hyundai Robot HA006 series

Hyundai Robot HA006 series

Hyundai Robot HA006A  Features - High Speed - High accuracy - Large working envelope - High reliability & flexibility   Application - Arc Welding - Material handling - Sealing   Hyundai Robot HA006A  Specifications Model HA006A Structure Articulated Degree of Freedom 6 Drive Method AC Servo Max. MotionRange Main Axes Swivel ±172 ° Horizontal  +180 ° ~ -78 ° Vertical  +180 ° ~ -82 ° Wrist Axes R2 ±180 ° B(Bending) ±135 ° R1(Twisting) ±360 ° Max. Speed Main Axes Swivel 230 °/s Horizontal 230 °/s Vertical 230 °/s Wrist Ax
Call Seller for Quote
Company Information
Name : T.N. METAL WORKS CO., LTD.
Contact : ที.เอ็น. เมตัลเวิร์ค
Tel : 021155000

Hyundai Robot HA006A  Features
- High Speed
- High accuracy
- Large working envelope
- High reliability & flexibility



Application
- Arc Welding
- Material handling
- Sealing



Hyundai Robot HA006A  Specifications

Model HA006A
Structure Articulated
Degree of Freedom 6
Drive Method AC Servo
Max.
MotionRange
Main Axes Swivel ±172 °
Horizontal  +180 ° ~ -78 °
Vertical  +180 ° ~ -82 °
Wrist Axes R2 ±180 °
B(Bending) ±135 °
R1(Twisting) ±360 °
Max.
Speed
Main Axes Swivel 230 °/s
Horizontal 230 °/s
Vertical 230 °/s
Wrist Axes R2 430 °/s
B(Bending) 430 °/s
R1(Twisting) 640 °/s
Payload 6 kg
Allowable
Torque
Wrist Axes R2 1.2 kgf·m
B(Bending) 1.0 kgf·m
R1(Twisting) 0.6 kgf·m
Repeatability ±0.04mm
Ambient temperature 0 ~ 45 °C
Body Weight 150kg
Installation method Floor/Wall/Ceiling
