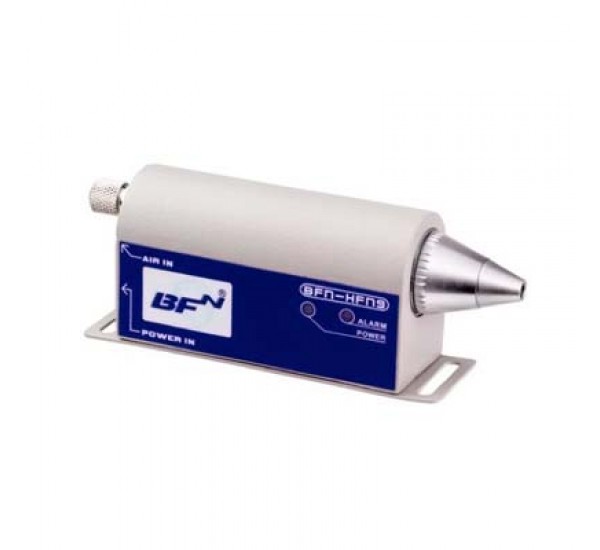

Ionizer Nozzle BFN

Specification of Ionizer Nozzle  BFN Model BFN-HFN9

Model: Ionizer Nozzle Model BFN-HFN9
Patent: of Invention
Power: DC23/500ma Output (power input AC220V (+15%)/50Hz or AC110V (+15%)/60Hz)
Operating Current: 0.15A (at the highest speed)
Maximum air output: 160CFM (Single Fan)
Effective Coverage: 100 x 800 mm.
Discharged Speed: < 1 sec (1000V ~ 100V at 300mm. away the nozzle in max speed)
Ion Balance: -15V ~ +15V
Test Condition: 25 ℃, Humidity 55%, measured up with the EOS/ESD S3.1-2006 criterion
Windpipe connector spec: Diameter 6mm.
Color: off white + Sky blue plastic
Dimension(W xH x D): 34 x 45 x 115mm.
Cable Length: 2m.
Color: Light Grey
Material of Blower: ABS Fireproofing
Ozone Thickness: < 0.02ppm (150mm. ahead from air outlet)
Weight: 146kg (Nozzle Body)
