Caged Ball LM guide

Caged Ball LM guide

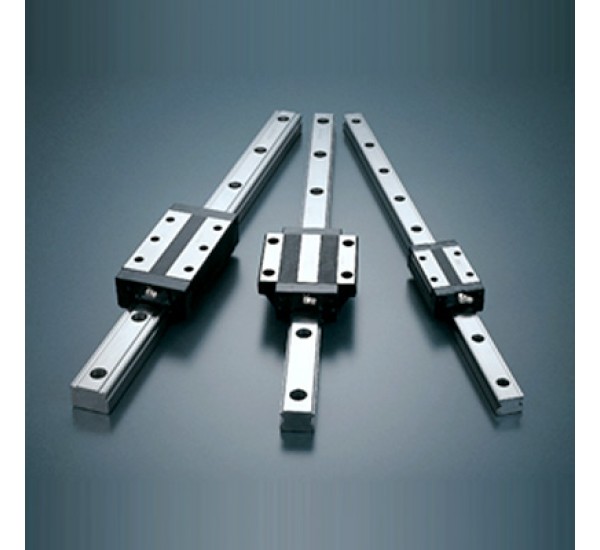

The Caged Ball LM Guides series has a high rigidity design that allows it to achieve highly accurate and linear motion. The balls roll in four rows of raceways, precision-ground on an LM rail and an LM block. The ball cages and endplates incorporated in the LM block allow the balls to circulate. Each row of balls is placed at a contact angle of 45°so that the rated loads applied to the LM block are uniform in the four directions (radial, reverse-radial and lateral directions), enabling the LM Guide to be used in all orientations. In addition, the LM block can receive a well-balanced preload, increasing the rigidity in the four directions while maintaining a constant, low friction coefficient.   Cage Ball LM guide Features: - Large permissible load and high rigidity - High Precision of Mot
Call Seller for Quote
Model: -
Company Information
Name : บริษัท ไอ.เอ็น.บี. เอ็นเตอร์ไพรส์ จำกัด
Contact : sales@inb.co.th sales@inb.co.th
Tel : Please login.

The Caged Ball LM Guides series has a high rigidity design that allows it to achieve highly accurate and linear motion. The balls roll in four rows of raceways, precision-ground on an LM rail and an LM block. The ball cages and endplates incorporated in the LM block allow the balls to circulate. Each row of balls is placed at a contact angle of 45°so that the rated loads applied to the LM block are uniform in the four directions (radial, reverse-radial and lateral directions), enabling the LM Guide to be used in all orientations. In addition, the LM block can receive a well-balanced preload, increasing the rigidity in the four directions while maintaining a constant, low friction coefficient.



Cage Ball LM guide Features:

- Large permissible load and high rigidity
- High Precision of Motion
- Accuracy Averaging Effect by Absorbing Mounting Surface Error
- Easy Maintenance
- Improved productivity of the machine
- Substantial Energy Savings
- Low Total Cost
- Ideal Four Raceway, Circular-Arc Groove, Two-Point Contact Structure
- Superb Error-Absorbing Capability with the DF Design
