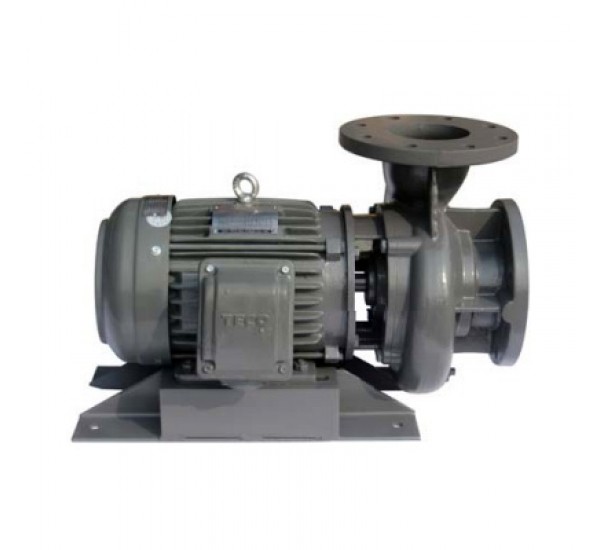

On land Pump GPS series

On land Pump GPS series - GPS Coaxial Pump

On land Pump GPS series Features

1. The optimal hydraulic model is used for impeller, the pump is of an utmost dynamic-static balance and reliable performance.
2. The pump shaft is an extended one from the motor, so the concentricity is absolutely reliable.
3. The pump which is supported by imported bearing, runs at little vibration and low noise.
4. Singl-stage single-suction horizontal centrifugal pump; closed impeller and volute chamber are adopted.
5. Coaxial volute structure, high efficiency, small volume, light weight, easy installation and maintenance.
6. Mechanical seal, no damage to shaft, no leakage, long duration.
7. Can choose other materials according to the customer's requirement. (There are cast iron macterial dimensions in this catalog, stainless steel size provide separately.)

Specification On land Pump GPS series

DN           :  25 – 300 mm.

Flow rate  :  2 – 900 m3/hr

Head        :  12 – 116 m.

Power       :  0.37 – 90 kw.

Material    :  FC 200, SUS 304,SUS 316

Speed       :  1450 rpm, 2900 rpm.

Application

The pump specially apply to air-condition cold or hot water circulation and also apply to the following:

1. Can be used together with equipment
2. Water-supplying system of apartment (building)
3. Industrial water supply
4. Fire-fighting water system
5. Construction engineering water supply
6. Waste water treatment
7. Farm water irrigation
8. Boiler water supply
