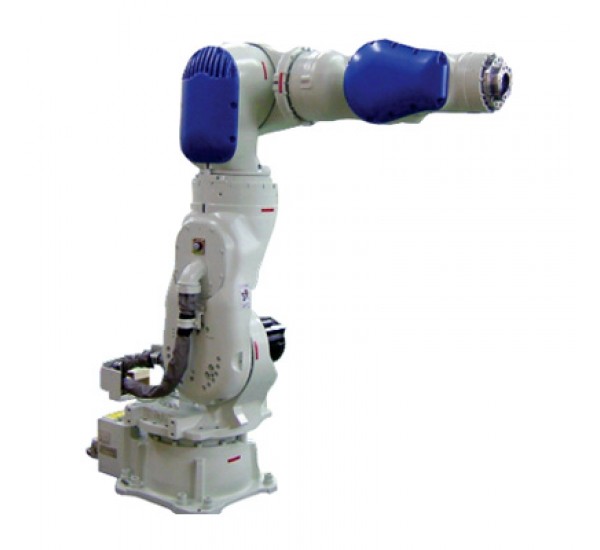

YASKAWA 7 AXIS ROBOT SIA50D



The SIA50D is a lean and powerful 7-axis single-arm robot ideal for automating operations such as assembly, inspection, machine tending and handling.



It's revolutionary design with high wrist performance and fully integrated supply cables, enables the SIA50D to work in confined spaces with an amazing freedom of movement. With a minimal footprint and high motion flexibility the SIA50D can be positioned out of the normal working area (i.e. floor-, ceiling-, wall-, incline- or machine-mounted) without limiting the motion range of any axis. To save valuable floor space the SIA50D can be mounted between machines, which also provides open access to the machines for maintenance, adjustment or testing.



Technical Data

Controlled axes 7
Payload 50 kg
Maximum reach P-point 1630 mm
Repeatability ±0.1 mm
Weight 640 kg
Power requirements 8.7 kVA
Mounting positions Floor, Wall, Ceiling
Suitable for Assembly
Machine tending
Material handling
Maximum speed S-axis 170 º /sec
θ-axis 130 º /sec
L-axis 130 º /sec
U-axis 130 º /sec
R-axis 130 º /sec
B-axis 130 º /sec
T-axis 200 º /sec
