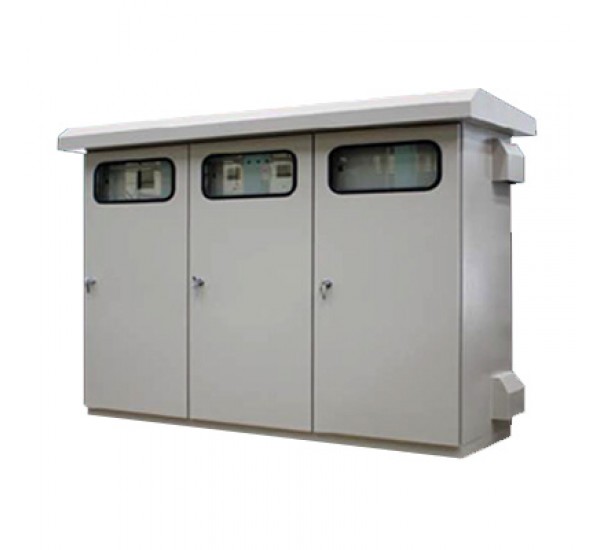

MDBO Main Distribution Board Outdoor

MDBO is an enclosure designed for outdoor purposes which has a canopy to help prevent liquids ingress into the enclosure. It is made from a cold rolled sheet steel with 1.5 mm. thickness and strengthening by welding the structure with 3 mm. steel thickness. There are 2 doors panel which the front door panel has glasses for easy checking the system inside. Moreover, the underneat of the canopy has a ventilation hole around to help release the high temperature inside the encloure. In addition, there is a removable bottom gland plate for cable in and out and the enclosure will be sealed around for more protection.
