Photoelectric Amplifier

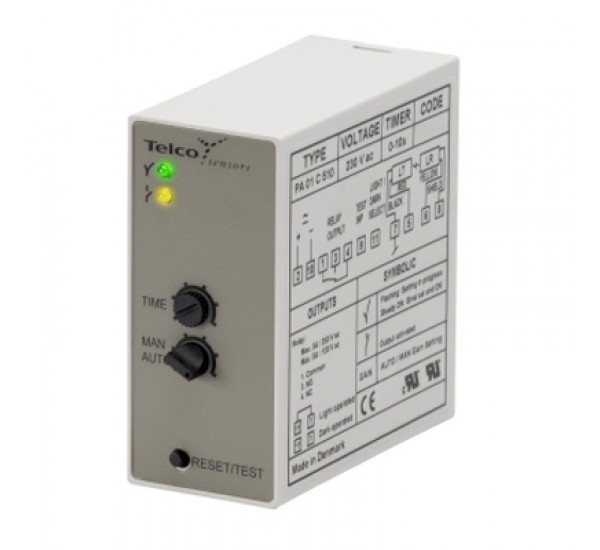

PA 01 is a 1-channel photoelectric amplifier, which is to be used in conjunction with a set of remote transmitter LT and receiver LR from the series 101, 100, 110 or 120.

Descriptions :
-  Thru-beam : 0-45 m
-  Diffuse proximity : 0-3,5 m
-  230 V ac, 115 V ac or 24 Vac/dc supply voltage
-  Automatic and/or manual sensitivity adjustment
-  Sensor LED-drive
-  Adjustable on/off time delay
-  1 relay or 1 transistor output
-  STF - Signal Tracking Feature
-  Switch selectable light or dark function
-  Switch selectable long or short range
-  Power, output and signal status indicators
-  Test input
-  11-pole DIN socket connection
