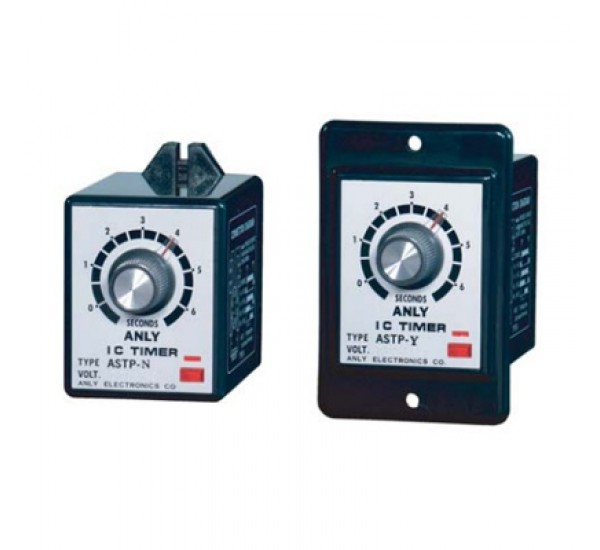

ASTP Analogue Timer

Model : ASTP-N1 / Y1, ASTP-N2 / Y2, ASTP-N / Y ASTP Analogue Timer Features: - Customized CMOS IC for low power consumption high operation stability and extreme timing accuracy - 15 different time ranges available, from 0.1S to 24H - CE certified ASTP Analogue Timer Specifications: Operating voltage DC(V): 12, 24 AC(V): 12, 24, 110, 220, 240 Allowable operating voltage range 85~110% of rated operating voltage Rated frequency 50 / 60 Hz Contact rating 250VAC 5A (resistive load) Reset time MAX 0.1S Power consumption Approx. 3VA Life Mechanical: 5,000,000 times Electrical: 100,000 times Ambient temperature -10 ~ +50°C Ambient humidity MAX 85%RH Weight Approx. 220g
