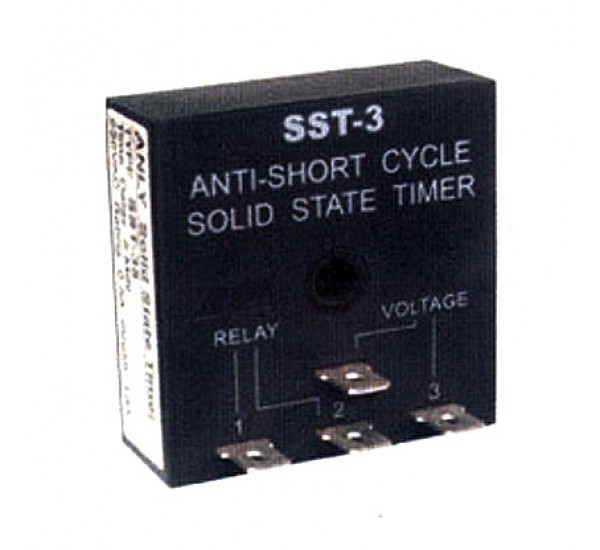

SOLID STATE TIMER : SST
Model : SST-3/ SST-4
SOLID STATE TIMER Features :
- Contact-Free control for fast operation and long life
- Humidity resistant, suitable for air conditioner and refrigeration equipment
SST-3 Special Characteristics
- Delay Start –using auto lock-rotor feature to avoid generators and pumps being damaged due to restart in short intervals
SST-4 Special Characteristics
- Wide operating voltage range in single unit, from AC 80V˜240V
- Wide timing range (1˜1023sec or 1˜1023min) selectable via DIP switch
SOLID STATE TIMER Specifications :
| operating voltage | SST-3 AC(V): 24, 120, 230 / SST-4 AC(V): 80 ~ 240 |
| Allowable operating voltage range | 85~110% of rated operating voltage |
| Rated frequency | 50 / 60 Hz |
| Contact rating | SST-3 250VAC 1A (resistive load) / SST-4 250VAC 3A (resistive load) |
| Reset time | SST-3 MAX 0.2S / SST-4 MAX 0.1S |
| Power consumption | SST-3 Approx. 2VA / SST-4 Approx. 1.2VA |
| Life | Electrical: 100,000 times |
| Ambient temperature | -10 ~ +50C |
| Ambient humidity | MAX 85%RH |
| Weight | SST-3 Approx. 55g / SST-4 Approx. 63g |
