Universal CNC Cylindrical Grinding Machine

Universal CNC Cylindrical Grinding Machine

STUDER S33 Universal CNC Cylindrical Grinding Machine The S33 is a CNC universal cylindrical grinding machine for the individual and batch production of medium-sized workpieces with its universality and flexibility: it can be retooled from grinding between centres to live spindle grinding in the record time of under 2 minutes. This is made possible by the new wheelhead with two motor spindles.Distance between centres 650 or 1000 mmFixed wheelhead adjustable to 0° or 30° for external grinding or turret wheelhead for external and internal grinding with Hirth manual swivel 2.5° or automatic swivel 1°Frequency converter with constant wheel speed for external grindingC-axis for the workhead for thread grindingSwivelling machine table for grinding conesFull enclosure with two sliding doorsG
Call Seller for Quote
Model: STUDER S33
Company Information
Name : บริษัท ดีเคเอสเอช (ประเทศไทย) จำกัด
Contact : บริษัท ดีเคเอสเอช (ประเทศไทย) จำกัด บริษัท ดีเคเอสเอช (ประเทศไทย) จำกัด
Tel :

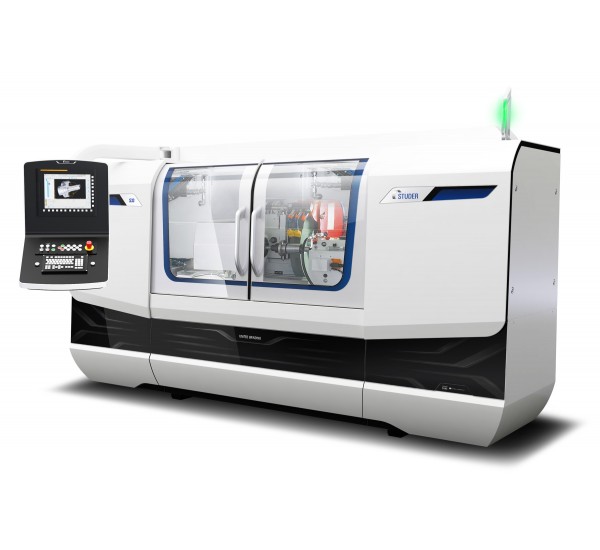

STUDER S33 Universal CNC Cylindrical Grinding Machine

The S33 is a CNC universal cylindrical grinding machine for the individual and batch production of medium-sized workpieces with its universality and flexibility: it can be retooled from grinding between centres to live spindle grinding in the record time of under 2 minutes. This is made possible by the new wheelhead with two motor spindles.

  • Distance between centres 650 or 1000 mm
  • Fixed wheelhead adjustable to 0° or 30° for external grinding or turret wheelhead for external and internal grinding with Hirth manual swivel 2.5° or automatic swivel 1°
  • Frequency converter with constant wheel speed for external grinding
  • C-axis for the workhead for thread grinding
  • Swivelling machine table for grinding cones
  • Full enclosure with two sliding doors
  • Granitan machine bed
  • Standardized interface for loader and peripheral devices
  • Large range of accessories
