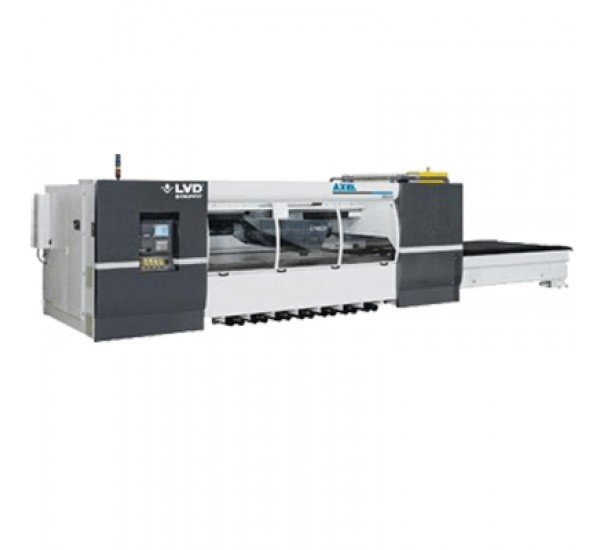

Axel Laser Processing

Axel Laser Processing
HIGH-SPEED LASER PROCESSING CENTER

1. High performance linear motor delivers high-speed cutting for fast, continuous processing of high quality parts
2. Cutting speeds up to 40 m/min (1575 IPM) for maximum output
3. 1500 x 3000 mm (5' x 10') work table area
4. Incorporates automatic shuttle tables or a fully integrated and programmable load/unload system
5. Quick change lens (5", 7.5" and 10") equipped as standard
6. Laser Eye optical sensor referencing system allows automatic and non-contact sheet referencing
7. Capacitive height sensing maintains a constant distance between the head and the material being processed and adjusts to any undulations in the plate
8. NC focus control for rapid changeover times and optimised cutting
9. Constant beam length system ensures consistent cutting over the entire cutting area
10. NC Optimization maximizes machine productivity without operator intervention by automatically determining the cutting head motion based on travel distance
11. Fast cut-to-cut workpiece changeover
12. High reliability with low maintenance and operation costs
13. Integrated LVD - Fanuc machine, control, laser source and motor drive package
14. Modular construction allows for multiple loading stations, up to three material stations
15. Available with 4 or 5 kW resonators

Key Options:Axel Laser Processing

1. Plasma detection feature
2. Load/unload system
3. Choice of 2.5, 4, 5 kW laser sources
4. Cadman-L offline software
