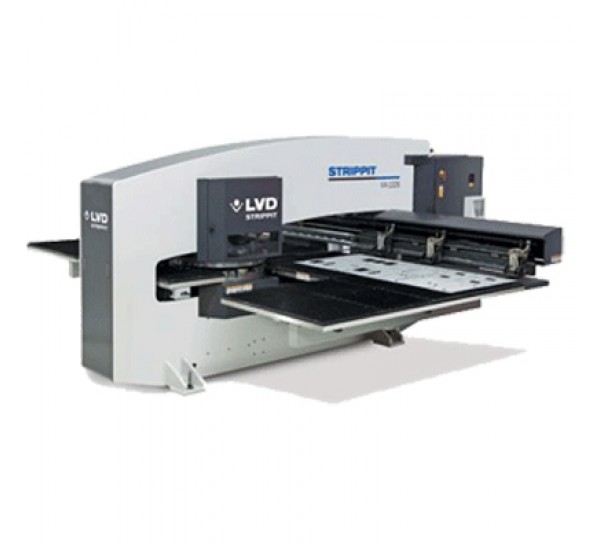

Strippit VX-Series

Strippit VX-Series

Strippit VX-Series HIGH SPEED, HIGH PRODUCTIVITY 20 TON CNC TURRET PUNCH PRESSES The ultimate in productivity – up to 530 HPM 30% increase in productivity over previous generation machines Low power consumption press drive (average consumption 6.7 kW; standby consumption 0.9 kW) One of the world’s lowest energy consuming punch presses Full featured, robust machines High performance 20 metric ton hydraulic system Large, flexible 48-station thick turret configuration Four 88,9 mm (3.5") auto-index stations 6,4 mm (0.250”) maximum material thickness 25 mm (0.984”) feed clearance maximizes forming capabilities Fast die change system 'Indexable' Multi-Tool capability (LVD Patent) 'Wheel' and 'Tapping' tool compatible 3 standard programmable and relocatable work clamps 450 x 500 mm wor
Call Seller for Quote
Model: VX-Series
Company Information
Name : LVD (Thailand) Ltd.
Contact : แอล วี ดี
Tel : Please login.

Strippit VX-Series
HIGH SPEED, HIGH PRODUCTIVITY 20 TON CNC TURRET PUNCH PRESSES

  1. The ultimate in productivity – up to 530 HPM
  2. 30% increase in productivity over previous generation machines
  3. Low power consumption press drive (average consumption 6.7 kW; standby consumption 0.9 kW)
  4. One of the world’s lowest energy consuming punch presses
  5. Full featured, robust machines
  6. High performance 20 metric ton hydraulic system
  7. Large, flexible 48-station thick turret configuration
  8. Four 88,9 mm (3.5") auto-index stations
  9. 6,4 mm (0.250”) maximum material thickness
  10. 25 mm (0.984”) feed clearance maximizes forming capabilities
  11. Fast die change system
  12. 'Indexable' Multi-Tool capability (LVD Patent)
  13. 'Wheel' and 'Tapping' tool compatible
  14. 3 standard programmable and relocatable work clamps
  15. 450 x 500 mm work chute
  16. Powerful Fanuc 180iP “User Friendly” Windows®PC based control with network capability

Key options:Strippit VX-Series
- ABS automatic tool lubrication
- Autoload load/unload system
- Pick-Sort robotic material handling system
- Compact Tower system (6 or 10 pallet)
- CADMAN-P 3D offline software
