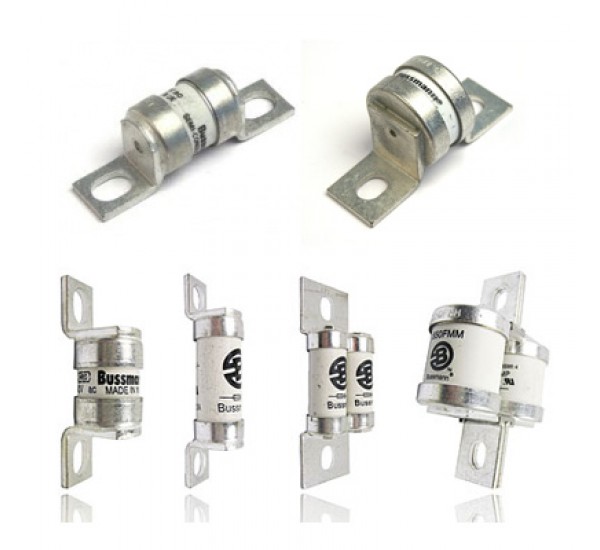

British BS 88 Fuse Ranges
| Amps | Voltage AC | Voltage DC |
| 6-900 | 240 | 150 |
| 6-710 | 690 | 500 |
General Information
Designed and tested to:
• BS 88: Part 4
• IEC 269: Part 4
• UL Recognized
Bussmann offers the industry’s widest range of British style semiconductor fuses and accessories. Bussmann British style products use innovative arc quenching techniques and high grade materials to provide:
• Minimal energy let-through (I2t)
• Excellent DC performance
• Good surge withstand profile
British style fuses are typically found in equipment manufactured in the United Kingdom or British Commonwealth countries. However, North American manufacturers have begun to specify British style fuses — particularly in UPS applications at 240V or less — to take advantage of their size, performance and cost benefits.
Voltage Rating
All Bussmann British style fuses are tested to IEC 269: Part 4. This standard requires a test voltage which is 5% higher than the rated voltage. In North America, fuses are required to clear only their rated voltage.
Accessories
Trip-indicator fuses are available for use in parallel with the main fuse. Indicator fuses can be attached to the associated fuselink, or mounted separately in panel-mounted fuseclips. In addition, a push-on adapter and microswitch attachment are available, to provide remote indication. Fuse blocks are also available for most applications.
Features and Benefits
• Excellent cycling capability
• Excellent DC performance
• Low arc voltage and low energy let-through (I2t)
Typical Applications
• DC Common bus
• AC and DC drives
• Power converters/rectifiers
• Reduced voltage starter
