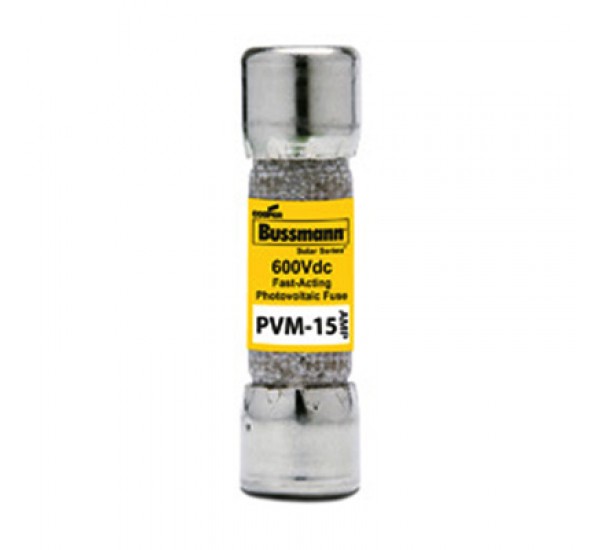

Solar PVM - Midget Fuse

A range of UL 2579 fast-acting 600Vdc Midget fuses specifically designed to protect solar power systems in extreme ambient temperature, high cycling and low level fault current conditions (reverse current, multi-array fault).   Solar PVM - Midget Fus...
Call Seller for Quote
Model: -
Company Information
Name : บริษัท เอพีที กรุ๊ป จำกัด
Contact : marketing@aptgroup.co.th marketing@aptgroup.co.th
Tel : Please login.

A range of UL 2579 fast-acting 600Vdc Midget fuses specifically designed to protect solar power systems in extreme ambient temperature, high cycling and low level fault current conditions (reverse current, multi-array fault).



Solar PVM - Midget Fuse Detial

Catalog Number PVM Series
Description Fast-Acting 600Vdc Midget Photovoltaic Fuse
Size 13/32" x 1-1/2" (10x38mm)
Volts 600Vdc to UL 2579
Amps 4 - 30A
Interrupting Rating 50kA DC
Agency Information UL Listed 2579, Guide JFGA, File E335324, CSA Component Certified C22.2
Typical Applications • Solar Combiner Boxes
• Inverters
• Solar Strings



Solar PVM - Midget Fuse Features:

  1. UL Listed for use in 600Vdc photovoltaic systems
  2. 50kA interrupting rating
  3. Provides fast-acting protection under low-fault current conditions that occur in PV systems
  4. Demonstrated performance in extreme temperature cycling conditions
  5. Low power loss during operation provides increased energy savings
