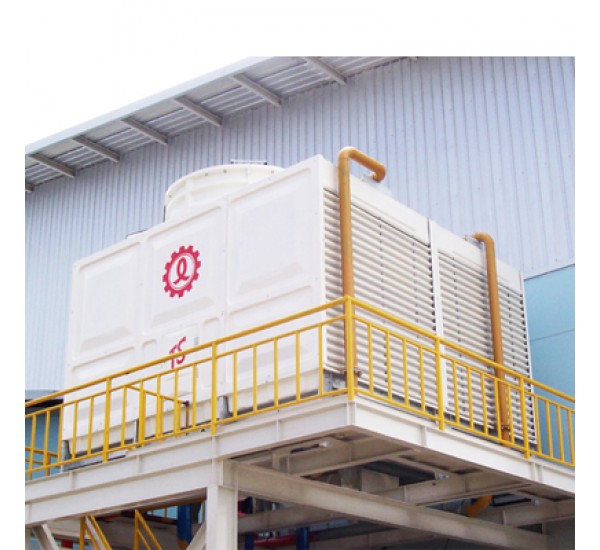

Dewing Cooling Tower Model LRC-TS

Integrated  Characteristics :Dewing Cooling Tower Model LRC-TS

Higher  Performance
LRC-TS  incorporates  new  design  of  vacuum-formed  rigid  PVC  filling  with  increased  heat  transfer area  and  heat  rejection  efficiency.

Lower  Power  Consumption
High  efficient  hydrodynamics  “Venturi  tube”  fan  stack  with  low  resistance  filling  facilitates  good  ventilation  and  reduction of  fan  motor  power  to  save  electrical  energy.

Lower  Drift  Loss  Rate
Drift  eliminator  design  pattern  is  embedded  in  the  rigid  PVC  filling  to  economize  the space  for  maintenance  inside cooling  tower  plenum.  Drift  loss  is  less  than  0.02%  of  the circulating  water  flow  rate.

Durableness  and  Low  Maintenance
Major  components  of  LRC-TS  such  as  casing,  fan  stack,  basin,  access  door  and  inlet  louver  are made  up  of  anti-corrosive  FRP  material,  and  all steel  parts  are  hot-dip  galvanized  to  enable  the durableness  and  low  maintenance  cost.

Simplified  Tower  Frame  Work  Provides  Ease  of  Handling  and  Assembly
LRC-TS  minimized  the  complicated  steel  structures  while  at  the  same  time  maximized  the  use  of light  weight,  strong  construction  FRP  components.  As  the  Overall  Structure  is  simplified  therefore providing  easy  handling  and  shorter  assembly  time.

Easy  of  Piping  Works
Multiple-cell  design  with  independent  water  basin,  all  piping  connection,  except  inlet  pipe,  are gathered  on  the  basin,  Piping  are  reversible  to  meet  with  the  site  condition.  Common  water  basin  can be  furnished  as  an  option,  cell  partition  for  independent  operation  of  each  cell  is  also  available  as option.
