Chauvin Arnoux Energy Meter

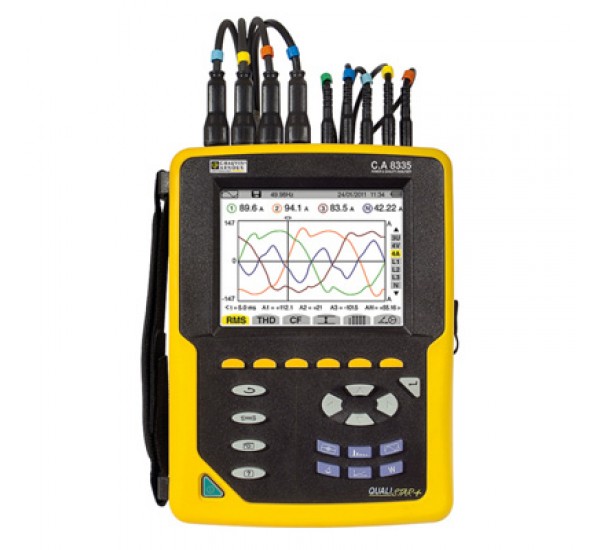

Chauvin Arnoux CA-8335 - Power And Energy Quality Logging Analyser

Model: CA-8335
Category: Power Analyzer/Renewable Energy
Type: Power And Energy Quality Logging Analyser
Brand: Chauvin Arnoux

Chauvin Arnoux CA8335 Specification:
Qualistar+ C.A 8335 is a new model of Three – phase network and energy analyser of Chauvin Arnoux, the European leader in the market for professional electrical measurement instrumentation which is well – known for capability and worthiness. C.A 8335 is a perfectly Three – phase network and energy analyser with even more features like Parallel Operation in measuring, analyzing and recording. User also immediately observe and analyze overall electrical system at their work place. C.A 8335 is designed for comfortable of user and appropriate for inspection and maintenance the electrical system both in factory and building. There is 2 GB SD Card which able to record data from 29 days to several years and also has PC Software that can connect between computer and C.A 8335 to display the online result, analyze and make the analysis report easily.

Chauvin Arnoux CA8335 Features

- Measurement, analyze and record Harmonics and Power electrical in both AC and DC
- Measurement of voltage up to 1000 volts in both Phase to Phase and Phase to Neutral.
- User is able to choose the clamp that appropriate with their work
      - Low current clamp probe
      - DC clamp probe is allow user to measure DC power
      - High current clamp probe
- Inrush Current function can detect and display the waveform while Inrush occurs which able to display in both Instantaneous and RMS
- Measurement of Harmonics both in current and voltage up to 50 th order
- Capture of up to 300 transients both in current and voltage
- Calculation and recording of power electrical in kWh, kVARh, kVAh and Peak demand
- Other measurements: PF, DPF, Voltage Flicker, KF, TanQ
- Transfer data to computer through USB 2.0
