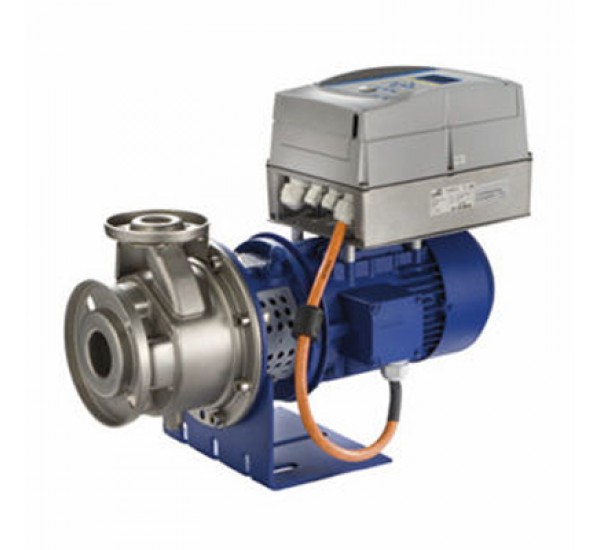

Etachrom BC PumpDrive

Etachrom BC PumpDrive

Design

Close-coupled, horizontal, single-stage annular casing pump, with ratings and main dimensions to EN 733, with replaceable casing wear rings and motor-mounted variable speed system.

Application

Spray irrigation, irrigation, drainage and water supply systems, heating and air-conditioning systems, fire-fighting systems, swimming pools, handling of condensate, hot water, cooling water, fire-fighting water, oil, drinking water, cleaning agents, service water.

Overview of technical data

1. Type of impeller    Closed; Radial;Multi-vane impeller;Closed / Radial
2. Type of installation    Close- coupled
3. Maximum drive rating    45 kW
4. Impeller material (EN standard)    1. 4571
5. Drive frequency    50 Hz / 60 Hz
6. Maximum speed of rotation    2. 900 1/min
7. Maximum flow rate    250 m³/h
8. Maximum discharge-side pressure    12 bar
9. Suitable for drinking water    Yes
10. Casing material (EN standard)    1. 4571
11. No. of impeller entries    Single entry
12. Casing material    Chrome nickel molybdenum steel
13. Minimum flow rate    2 m³/h
