Design KSB BUTTERFLY VALVES ISORIA 25

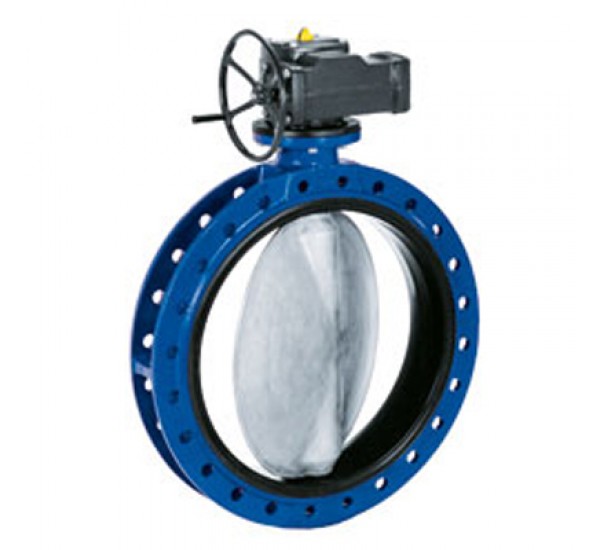

Centered disc butterfly valve with elastomer liner. With lever, manual gearbox, pneumatic, electric or hydraulic actuator. Semi-lug type body (T2) or U-section body with flat faces (T5). Body types T2 and T5 are suitable for downstream dismantling and dead-end service with counterflange. EN, ASME, JIS connections possible.

Applications KSB BUTTERFLY VALVES ISORIA 25

Shut-off service for liquids only.

Overview of technical data KSB BUTTERFLY VALVES ISORIA 25

Actuator options available ex works    Pneumatic actuator type ACTAIR; Electric actuator type ACTELEC;Pneumatic actuator type DYNACTAIR;Hydraulic actuator type ACTO

Body design: Median rib body; U-section body
Valve disc material: CC333G; JS 1030+COATING;1.4408
Dimension standard: EN 558- 1/20 ISO 5752/20
Liner material: EPDM- XA
Valve disc/plug material: Soft seat
Threaded-end design: Flange design; Wafer-type design
Body material (EN standard): JS 1030; GP240GH+N
DN max.: 1000
DN min.: 32
eClass assignment: 37010301
Main applications: Water; Industry and process engineering
Body material: Cast steel; Nodular cast iron
PN max.: 25
Maximum temperature: 80 °C
Minimum temperature: 10- °C
