สายไฟชนิดพิเศษ/สายทนไฟ FS/FDFH-0.6/1KV-CE-SWA

FS/FDFH-0.6/1KV-CE-SWA สายไฟชนิดพิเศษ/สายทนไฟ 0.6/1(1.2)kV MICA FIRE-BARRIER COPPER CONDUCTOR 90°C XLPE INSULATED PE JACKETED STEEL WIRE ARMORED FIRE RESSISTANT AND FLAME RETARDANT WITH LOW SMOKE ↵ CABLE STRUCTURE NUMBER OF CORE 2...

Call Seller for Quote

Model: -

Company Information

Name : บริษัท ซุปเปอร์สหแสง จำกัด

Contact : ซุปเปอร์ สหแสง

Tel : Please login.

ติดต่อผู้ขาย

Description

FS/FDFH-0.6/1KV-CE-SWA
สายไฟชนิดพิเศษ/สายทนไฟ
0.6/1(1.2)kV MICA FIRE-BARRIER COPPER CONDUCTOR 90°C XLPE INSULATED PE JACKETED STEEL WIRE ARMORED FIRE RESSISTANT AND FLAME RETARDANT WITH LOW SMOKE

↵

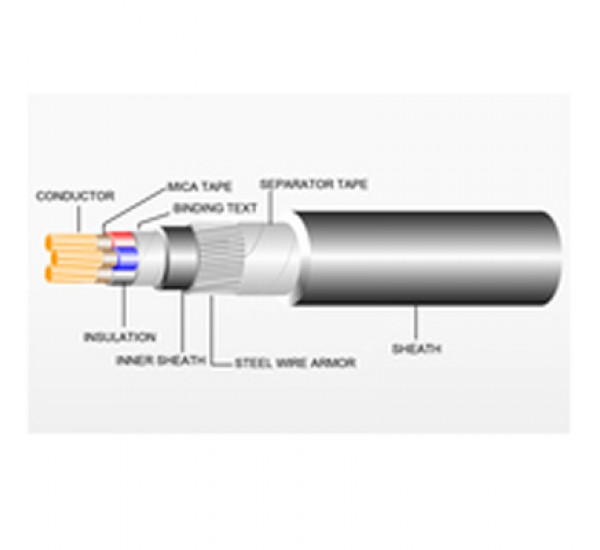

CABLE STRUCTURE
NUMBER OF CORE	2 up to 4 core
CONDUCTOR	Concentric stranded and compact stranded annealed Copper, Sizes 1.5 mm2 up to 400 mm2
INSULATION	Low smoke and zero halogen cross-linked polyethylene (LSOH-XLPE) Color : Red, Yellow, Blue, Black
ARMOUR	Steel Wire armor
SHEATH	Low Smoke and zero halogen polyethylene (LSON-PE)
CLASSIFICATION	Maximum conductor temperature 90o C Circuit voltage not exceeding 1kV
TESTING VOLTAGE	3.5kV
REFERENCE	BS7846
SMOKE DENSITY	BS EN50268-2 (IEC 61034-2)
FLAME RETARDANT STANDARD	BS 6387 Cat. CWZ., BS4066 part 3 Cat C
