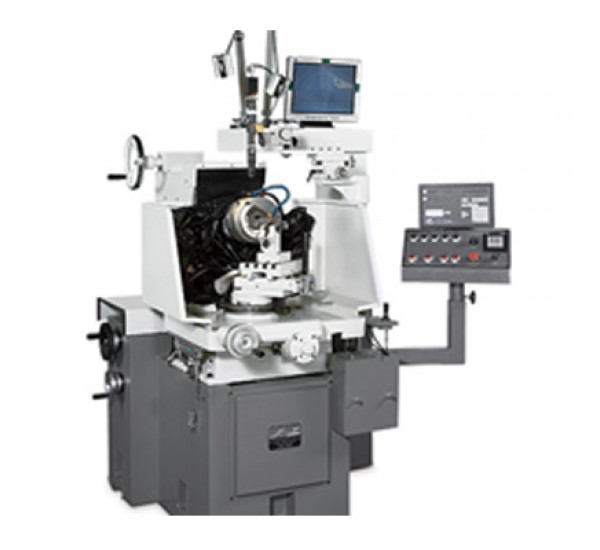

PCD & PCBN Tool Grinding Machine FC-200D
PCD & PCBN Tool Grinding Machine FC-200D
Precision tool grinding machine which in-corporates the necessary features required for the economical manufacture and regrinding of a wide range of cutting tools made of PCD, PCBN, tungsten carbide, HSS.
Machine specification:PCD & PCBN Tool Grinding Machine รุ่น: FC-200D
- Tip radius Ø0-60 mm
- Spindle speed 2850rpm 50Hz
- Grinding wheel size 150x40x40 mm
- Grinding pressure regulator 0-450 N
- Grinding wheel oscillation frequency 0-40/min (infinitely variable)
- Grinding wheel oscillation stroke 0-35/min (infinitely variable)
- Grinding wheel oscillation position 0-200/min (infinitely variable)
- Swivel table swiveling angle 240՞
- Swivel table clamping surface 210x160mm x 4 slot
- Workable handwheel division 0.001mm / 1 div
