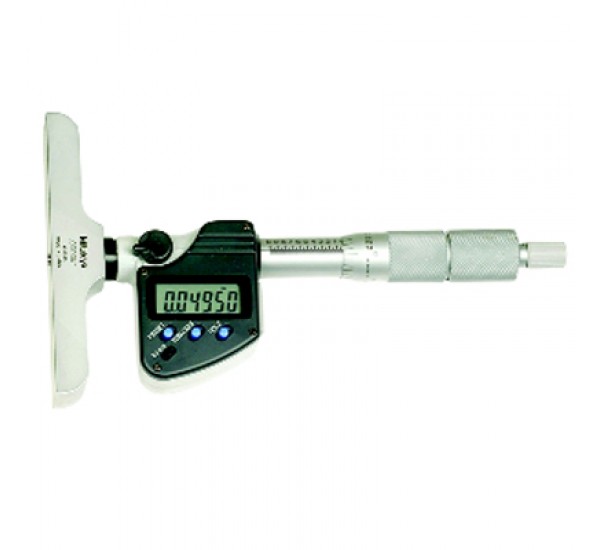

เครื่องมือวัด Mitutoyo Depth Micrometer SERIES 329

FEATURES Mitutoyo Depth Micrometer SERIES 329

  • • dia 4mm interchangeable rods, with lapped measuring end, provide a wide measuring range.
  • • The rod length can be adjusted in 25mm increments.
  • • With ratchet stop for constant force.
  • • With measuring rod clamp.
  • • With SPC output (series 329).
  • • With digit counter (series 229).


Technical Data Mitutoyo Depth Micrometer SERIES 329

  • Accuracy: +/-.00012in±3umfor micrometer head feed
  • +/-[.00008 + (.00004xR/3)]in R= max. measuring length (inch) +/-(2+L/75)umfor interchangeable rod, L=Max. measuring length (mm)
  • Resolution*: 0.001mm or .00005"/0.001mm
  • Graduation**: 0.01mm or .001in
  • Flatness of reference face: .00005in for 2.5in/1.3umfor 63.5mm width base, .00008¡+/- for 4in/2um for 101.6mm width base
  • Flatness of measuring rod face: 0.3um
  • Parallelism between reference face and measuring rod face: [.00016 + (.00004 x R/2]in R=max. measuring range (inch)
  • (4+L/50)um, L=Max. measuring length (mm) Measuring rod diameter: .157in/4mm
  • Display*: LCD
  • Battery*: SR44 (1 pc.), 938882
  • Battery life*: Approx. 3.5 years under normal use
