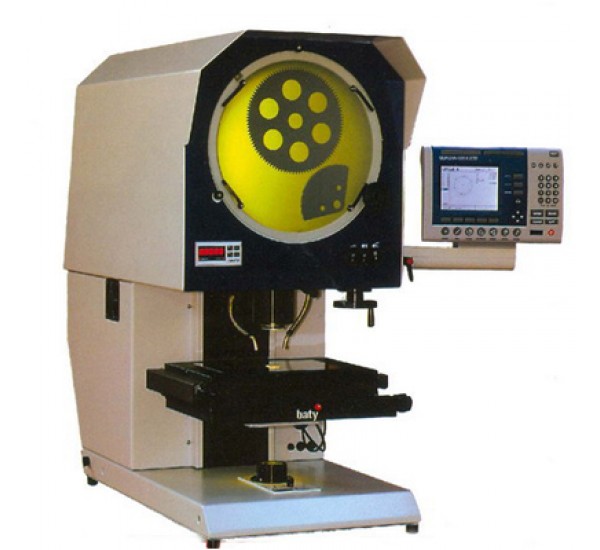

VERTICAL PROFILE PROJECTOR

VERTICAL PROFILE PROJECTOR SM350         Measuring range : 200 x 100 / 175 x 75 / 50 x 50 340 mm diameter screen with chart clips Surface area : 325 x 100mm. Max. Load : 20 Kgw. Image : Erect, reversed left ti right Power supply : 220 V / 50 Hz, 110V / 60 Hz Weight : 90 Kgw      Standard Feature VERTICAL PROFILE PROJECTOR SM350         0.5 Micron resolution measuring scales Digital angle measurement ( resolution 0.01 ) Profile illumination with fan cooled halogen lamp Surface illumination ( fibre optic ) x10 magnification lens Helix adjustment of light source for accurate thread form projection Workstage with machined slot for holding accessories Green filter Lens magnification choice :  x10 x20 x25 x 50 x100
