IDC Terminal connector

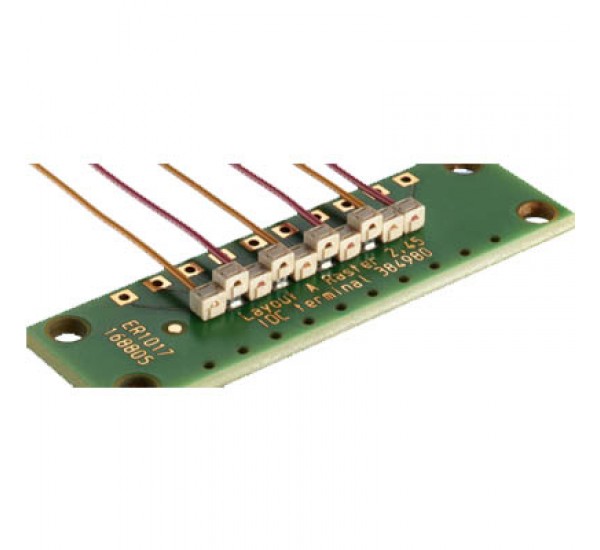

The very compact IDC Terminals enable highly reliable wire-to-board connections in extremely miniaturized applications such as retrofit LED lamps, medical equipment, mobile devices or smart metering equipment. The surface mount (SMT) IDC Terminals facilitate fully automated board assembly and eliminate the preparation (stripping) of wires prior to termination due to its IDC contacts. As a result, costly and unreliable hand soldering can be avoided as the discrete wires can be processed reliably and reproducibly. IDC Terminals are available for stranded and solid wires of different cross-sections and outer diameters (AWG 24 / 26 / 22).
Description IDC Terminal connector
ERNIs new IDC Terminal connector is designed for quick tool-less termination of discrete wires onto LED printed circuit boards. The insulation displacement technology provides a robust, stable electrical and mechanical power connection to single or multiple printed circuit boards in solid-state lighting, non-lighting and automotive market applications.
The IDC Terminal connector accepts 24 AWG wires with an insulation diameter of 0.725 mm and the dual beam contact support a 5.5 amp curent rating with a large SMT solder base to provide maximum stability on the PCB.
