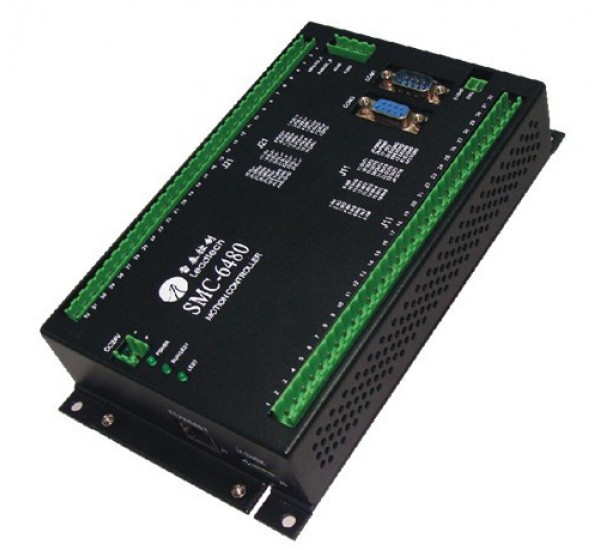

ตัวควบคุมตำแหน่ง Stand Alone Motion controller รุ่น SMC6480G
Features Stand Alone Motion controller รุ่น SMC6480G
- Ethernet supports multiple masters and slaves.
- TCP/IP protocol for long-range control
- Pulse output rate up to 5 MHz
- 2~4 axes linear interpolation
- 2 axes circular interpolation
- Multi-axis continuous interpolation
- Good contouring performance with the advanced path planning software
- Supports G code programming
- 2 D/A and 2 PWM outputs for custom use
- Support touch screen and USB flash disk, easy-to-use
Description Stand Alone Motion controller รุ่น SMC6480G
The SMC6480G is a high performance, Ethernet motion controller, which based on a 32-bit RISC CPU and a FPGA. It offers 1 axis to 4 axes motion control for stepping motors or servo motors to accomplish various operations. The SMC6480G can operate stand-alone or interface to a PC and USB flash disk over Ethernet and USB interface.
In multi-axis operation, the SMC6480G provides linear interpolation by any 2, any 3, or even all-4 axes. Any 2 axes can perform circular interpolation. And the SMC6480G supports the continuous interpolation function. All interpolations are realized by hardware, so faster interpolation speed, better interpolation accuracy and higher stability.
The SMC6480G can work in stand-alone mode, and supports G code programming. The user can create and edit G code program with touch screen or on a PC before downloading the program to the controller over Ethernet or USB flash disk.
The SMC6480G supports master-slave control mode. The user can realize real-time control by using a computer as a master controller. The application software developed with VB/VC/C++ Build/LabView on master computer can control or communicate with the SMC6480G over Ethernet.
Specifications
