Cable resistance thermometer with GL-approval

Cable resistance thermometer with GL-approval

Cable resistance thermometer with GL-approval Brand MÜLLER  Model WT-K1-GL   PERFORMANCES Cable resistance thermometer with GL-approval Sensor RTD: 1x PT100 / 1x Pt1000 / 2x Pt100 / 2x Pt1000 (2-, 3-, 4-wire) Accuracy: class A / class B / B1/2DIN / B1/3DIN / B1/10DIN Protective sheathing: stainless steel 1.4571 Diameter sheath: 4 / 5 / 6 mm Nominal length: 30 (d = 4) / 50 (d=4, d = 5) / 46 (d = 6) / 70 (d = 6) mm Option: other length Cable length: 2000 mm / Option: other length Cable: PVC-PVC / PTFE-silicone / PTFE-PTFE / PTFE-braiding-PTFE, Fibreglass-Fibreglass-stainless steel braiding Antikink: heat shrinkable sleeve / spring / without Connection: open ends
Call Seller for Quote
Model: WT-K1-GL
Company Information
Name : Test Instrument Engineering Co., Ltd.
Contact : เทสท์ อินสทรูเม้นท์ เอ็นจิเนียริ่ง
Tel : Please login.

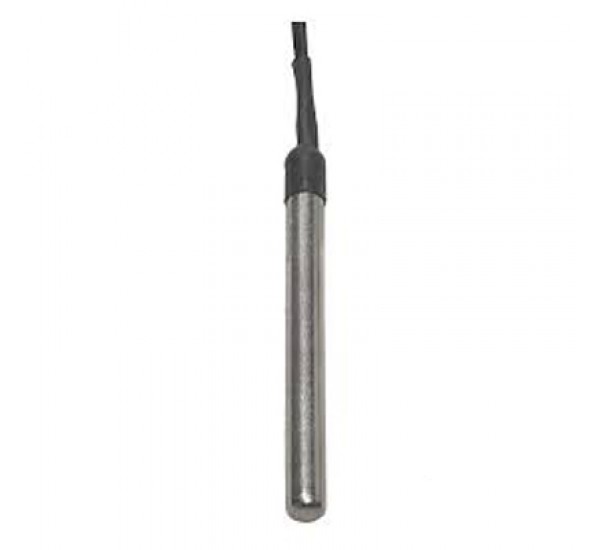

Cable resistance thermometer with GL-approval

  • Brand MÜLLER
  • Model WT-K1-GL



PERFORMANCES Cable resistance thermometer with GL-approval

  • Sensor RTD: 1x PT100 / 1x Pt1000 / 2x Pt100 / 2x Pt1000 (2-, 3-, 4-wire)
  • Accuracy: class A / class B / B1/2DIN / B1/3DIN / B1/10DIN
  • Protective sheathing: stainless steel 1.4571
  • Diameter sheath: 4 / 5 / 6 mm
  • Nominal length: 30 (d = 4) / 50 (d=4, d = 5) / 46 (d = 6) / 70 (d = 6) mm
  • Option: other length
  • Cable length: 2000 mm / Option: other length
  • Cable: PVC-PVC / PTFE-silicone / PTFE-PTFE / PTFE-braiding-PTFE, Fibreglass-Fibreglass-stainless steel braiding
  • Antikink: heat shrinkable sleeve / spring / without
  • Connection: open ends
