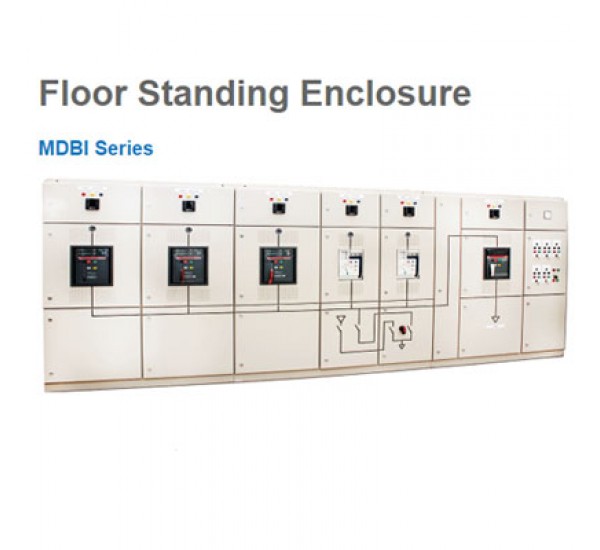

Floor Standing Enclosure MDBI Series

MDBI is a main distribution board for indoor purposes, which its unit can connect by assembling a single unit into serveral untis upon the requirement. It has a strength structure and base which it is made of 3.0 mm. steel thickness. The struchre of each unit is independent and can support the heavy weight of an electrical equipment and busbar. Moreover, the side panel provode with a ventilation hole both on the top and bottom of the panel. A ventilation fan is an option to help reduce the temperature inside the enclosure.

It also provide with the partition and door panal which made of 1.5 mm. steel tickness. There is also acable gland plate for both top and bottom of the enclosure for easu manae a cable in or out.

The door panel provide with TAMCO zinc alloy housing lock and painted with a polyester powder coated in RAL 7032



Specification Floor Standing Enclosure MDBI Series

Material: Cold Rolled Steel Sheet (JIS G3101, SS400 or equivalent)
Steel Thickness: 1. Enclosure Body, Mounting Plate, and Door Panel Thickness: 1.5 mm.
  2. Structure and Base thickness: 3.0 mm
Finished Surface: Polyester Powder Coated in in RAL 7032
Supply Includes: 1. Mounting plate and Bottom Gland Plate
  2. 2 partitions at both side panel
  3. Bracket support provide at the top for crane lifting (option)
  4. Cable gland plate at the top and bottom of enclosure
Technical Data: 1. Welding Assembled for structure
  2. Gasket seal around 3 sides panel and door panel
  3. Doors are provided with Zine Alloy Housing Lock inserted with zine alloy
  4. Removable cable gland plate for cable in or out at the top and bottom
  5. Ventilation hole at both side panel (left and right)
  6. 100 mm. base height
Protection Rating: IP40
