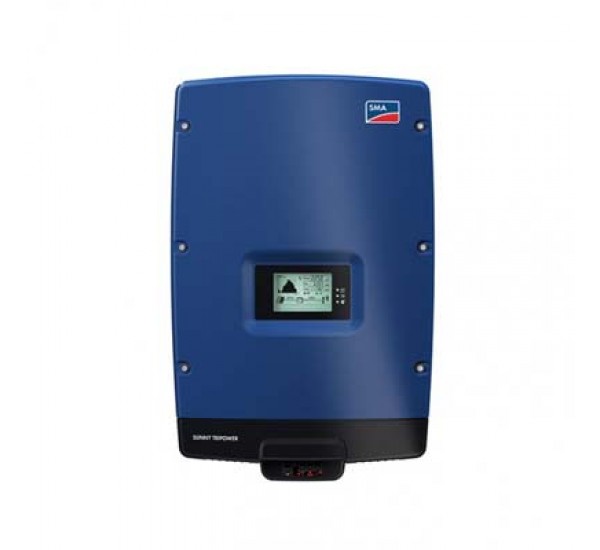

INVERTER SUNNY TRIPOWER 9000TL-20
SUNNY TRIPOWER 9000TL-20
- On-Grid Inverter
- SMA Sunny Tripower 3 phase
- SMA 9000WATT GRID TIE INVERTER
Economical
- Maximum efficiency of 98.3 %
- Shade management with OptiTrac Global Peak
- Active temperature management with OptiCool
Flexible
- DC input voltage of up to 1,000 V
- Integrated grid management functions
- Reactive power supply
- Module-tailored system design with Optiflex
Communicative
- SMA Webconnect
- Sunny Portal communication • Bluetooth® communication
- Simple country configuration • Multifunction relay comes standard
INVERTER SUNNY TRIPOWER 9000TL-20
| Model | Sunny Tripowerl 9000TL-20 |
| Series | Sunny Tripower |
| Manufacturer | SMA Solar |
| Mechanical | |
| Type | Grid Tie |
| Operating Temperature Range | -25° C…+ 60° C |
| Cooling | OptiCool |
| Dimensions (W x H x D) | 18.5x 28.7 x 9.5 inch |
| Weight | 37 Kg. |
| Input (DC) | |
| Max. DC Power | 9225 W |
| Max Input Voltage | 1000 V |
| MPP Voltage Range | 370 V – 800 V/580V |
| Min Input Voltage / Initial Input Voltage | 150V /188 V |
| Max Current | 15 A / 10 A |
| Output (AC) | |
| Maximum Output Power | 9000 W |
| Nominal AC Voltage | 3 / N / PE; 220 V / 380 V 3 / N / PE; 230 V / 400 V 3 / N / PE; 240 V / 415 V |
| Voltage Range | 160 V – 280 V |
| AC power frequency / rated grid voltage | 50 Hz/ 230 V |
| Max. Output Current | 13.4 A |
| Documentation | |
| Data Sheet | SMA Sunny Tripower 9000TL-20 |
| Warranty | SMA Solar |
