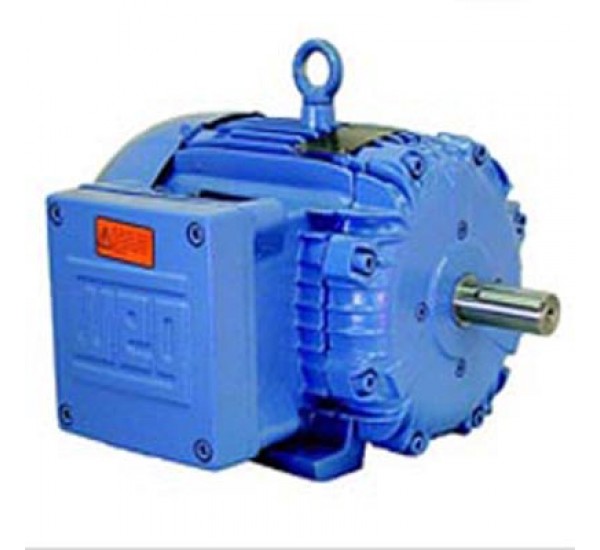

WEG Motor
WEG Motor
WEG Explosion Proof motors are suitable for applications requiring UL or CSA certification for hazardous locations.
Standard Features WEG Motor
Efficiency Certification number CC029A according to US Department of Energy Regulations
Three-phase, 60Hz
Voltage: 208-230/460, 460 or 575V
143T up to 586/7 cast iron frame
Squirrel cage rotor / Aluminum die cast
Totally Enclosed Fan Cooled - TEFC (IP54)
Ball bearings are supplied as standard
Cast iron frame
Class 'F' insulation
Temperature rise: Class 'B' (80ºC)
Service factor: 1.15
Inverter Duty as per CSA Standard (LR50962)
NEMA dimensions
NEMA ratings design 'B'
Continuous Duty (S1)
104ºF (40ºC) ambient temperature
Altitude: 3300 ft (1000 m)
1045 Carbon Steel Shaft for frames up to 365T
Call Seller for Quote
