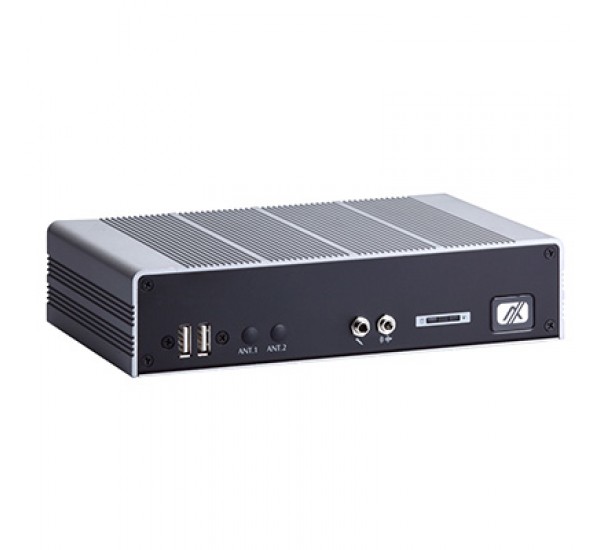

eBOX625-842-FL Fanless Embedded System

eBOX625-842-FL Fanless Embedded System

  Introduction The eBOX625-842-FL industrial-grade, extreme slim, fanless embedded system is powered by quad cores Intel® Celeron™ J1900 2.0GHz SoC (system-on-a-chip). Through the use of Intel® Bay Trail-D type quad-core SoC and one 8 GB DDR3L-1066/1333 SO-DIMM socket, the energy-efficient embedded box computer offers outstanding performance, yet remarkably power efficient experience. Dramatically lighter and rugged enclosure enables the compact system to fit into limited space and withstand any harsh industry environment. The eBOX625-842-FL features dual displays and rich connection capability, including VGA, HDMI, 2 LAN ports, 2 COM ports, 4 USB 2.0 and 8-channel DI/DO, providing an ideal solution for variety applications from digital signage, transportation, kiosk, industrial control a
Call Seller for Quote
Model: -
Company Information
Name : A Plus Serve Co., Ltd.
Contact : A Plus Serve Co., Ltd.
Tel : Please login.



Introduction
The eBOX625-842-FL industrial-grade, extreme slim, fanless embedded system is powered by quad cores Intel® Celeron™ J1900 2.0GHz SoC (system-on-a-chip). Through the use of Intel® Bay Trail-D type quad-core SoC and one 8 GB DDR3L-1066/1333 SO-DIMM socket, the energy-efficient embedded box computer offers outstanding performance, yet remarkably power efficient experience. Dramatically lighter and rugged enclosure enables the compact system to fit into limited space and withstand any harsh industry environment. The eBOX625-842-FL features dual displays and rich connection capability, including VGA, HDMI, 2 LAN ports, 2 COM ports, 4 USB 2.0 and 8-channel DI/DO, providing an ideal solution for variety applications from digital signage, transportation, kiosk, industrial control automation, medical equipment and IoT & M2M applications



eBOX625-842-FL
Fanless Embedded System with Intel® Celeron® J1900 2.0 GHz, HDMI, VGA, 2 GbE LAN, 4 USB and 2 COM
•    Intel® Celeron® J1900 2.0 GHz quad-core SoC
•    204-pin DDR3L-1066/1333 SO-DIMM max. up to 8 GB
•    Fanless operation design with full feature I/O
•    2 RS-232/422/485 and 4 USB 2.0 ports
•    One 2.5” SATA drive bay and mSATA supported
•    2 PCI Express Mini Card slots and 1 SIM slot
•    Supports VGA and HDMI dual display
•    Wide range operating temperature supported
