eBOX670-883-FL Fanless Embedded System

eBOX670-883-FL Fanless Embedded System

Introduction The eBOX670-883-FL supports the LGA1150 socket type for 4th generation Intel® Core™ i7/i5/i3 and Celeron® processors (formally codename: Haswell) with Intel® Q87 Express chipset. Under this rich support system, the eBOX670-883-FL allows wide operating temperature ranging from -40°C to +55°C for the most endurable operation. The outstanding embedded controller comes with four 10/100/1000 Ethernet ports, Jumbo Frame (9.5K), PXE Remote Boot, Teaming, and wake-on-LAN (WOL) function to highly enhance its network connection speed. Additionally, the eBOX670-883-FL supports up to three independent hi-resolution displays or a 4K display. Undoubtedly, this rugged fanless embedded computer is the best solution for any industrial field, including host computers, cloud computing servers,
Call Seller for Quote
Model: -
Company Information
Name : A Plus Serve Co., Ltd.
Contact : A Plus Serve Co., Ltd.
Tel : Please login.

Introduction
The eBOX670-883-FL supports the LGA1150 socket type for 4th generation Intel® Core™ i7/i5/i3 and Celeron® processors (formally codename: Haswell) with Intel® Q87 Express chipset. Under this rich support system, the eBOX670-883-FL allows wide operating temperature ranging from -40°C to +55°C for the most endurable operation. The outstanding embedded controller comes with four 10/100/1000 Ethernet ports, Jumbo Frame (9.5K), PXE Remote Boot, Teaming, and wake-on-LAN (WOL) function to highly enhance its network connection speed. Additionally, the eBOX670-883-FL supports up to three independent hi-resolution displays or a 4K display. Undoubtedly, this rugged fanless embedded computer is the best solution for any industrial field, including host computers, cloud computing servers, multimedia applications, and automation systems.

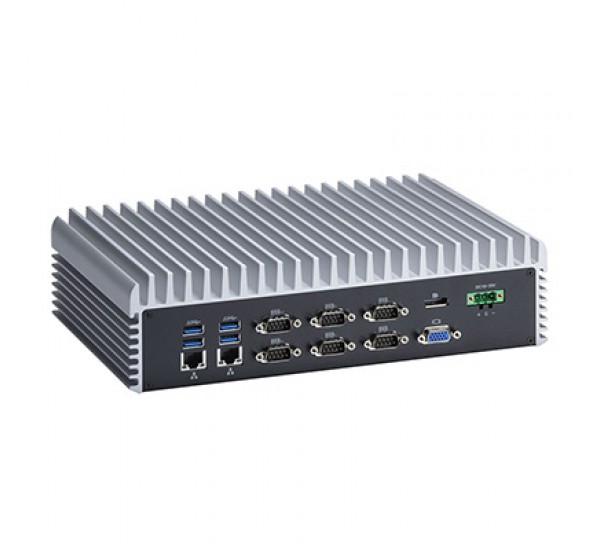

eBOX670-883-FL
Fanless Embedded System with LGA1150 Socket Intel® Core™ i7/i5/i3 & Celeron® processor, Intel® Q87, HDMIx2/VGA/ DisplayPort, 4 GbE LAN, 6 USB 3.0, Wide Range DC-in and PCIe Mini Card
•    LGA1150 socket 4th generation Intel® Core™ i7/i5/i3 & Celeron® processor (Haswell) with Intel® Q87
•    Fanless operation design with full feature I/O
•    204-pin DDR3-1333/1600 SO-DIMM max. up to 16 GB
•    Two 2.5” SATA drive bay, 1 CFast™ slot and mSATA
•    Two internal PCI Express Mini Card slots, 1 SIM slot
•    2 HDMI, VGA and DisplayPort with triple independent displays supported
•    Jumbo Frame (9.5k), WoL, PXE Remote Boot, Teaming supported
•    Wide range 9-36VDC power input
