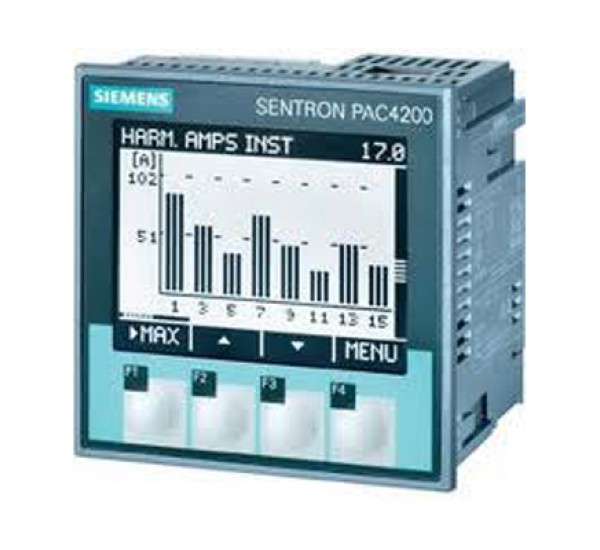

PAC4200 Power Meter

The SENTRON PAC4200 is a feature packed power monitoring device that is suitable for use in industrial, government and commercial applications where basic to advanced metering, logging, and I/O is required. The meter may be used as a stand alone device monitoring over 200 parameters or as part of an industrial control, building automation or global enterprise wide monitoring system.

PAC4200 Power Meter  Features

• Basic to advanced metering up to 200 parameters
• Load profile and event logging
• Automation integration
• Modbus gateway for downstream serial devices
• Harmonics measuring Volt/Amp 3...31st
• Phase angle / Phase chart
• Option Expension module for 4DI/2DO
• Operating hours counter
• Limit monitoring function
• Logic function
• Event log more than 4000 event
• Gate way function


Communications

• Ethernet integrated  (10 /100 Mbit/sec)
• Modbus TCP integrated RJ45 port  (10/100  Mbit/sec) - STANDARD
• PROFIBUS DP expansion module - OPTIONAL
• Modbus RTU expansion module - OPTIONAL
• Digital Inputs and Outputs
• Digital input 24 Vdc / 0.7 mA   (2)
• Digital output 12-24 Vdc / 10-27 mA  (2)
