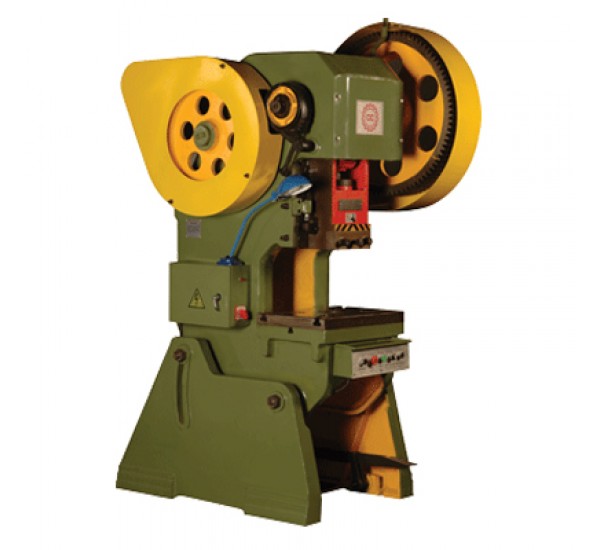

Crank Press Model 25T-40T

Main features of the machines

- Body can be tilted in a certain range, ease of stamping products and waste materials slide from the die. Table open in three directions, handing and operation are relatively easy to mold.
- Body by casting, steel turn kry clutch, simple structure, operation and maintenance.
- Work smoothly. Using the band brake, collapse of the slider with compression type fuse, collapse pressure overload is to ensure against damage to the machine, extending the reliable life of the machine.
- Can be used in punching, blanking, cutting, bending, molding, light stretching and other technology.



Crank Press Model 25T-40T Specifications

ITEM Unit 25T 40T
Nominal pressure KN 250 400
Nominal Stroke mm 4.8 7
Distance of travel range of the sliding block mm 65 100
Numbers of travel range no.perminute 55 55
Maximum sealing height mm 260 290
Adjustable height of mould mm 55 75
Distance between central line of the sliding block and the machine body mm 200 210
Bolster Size Length mm 370 400
Width mm 560 610
Size of the working platform Length mm 200 150
Width mm 290 300
Diameter mm 260 200
Size of buttom palne of the sliding block Length mm 220 220
Width mm 250 242
Hole size of mould handel Diameter mm 40 50
Depth mm 60 70
Distance of between columns mm 270 290
Thickness of working platform mm 40 50
Tlit Angle / 30 15
Dimension Length mm 1,350 1,550
Width mm 950 1,140
Height mm 2,130 2,280
Power of Motor Kw 3 3
Weight of machine Kg 1,780 2,660
