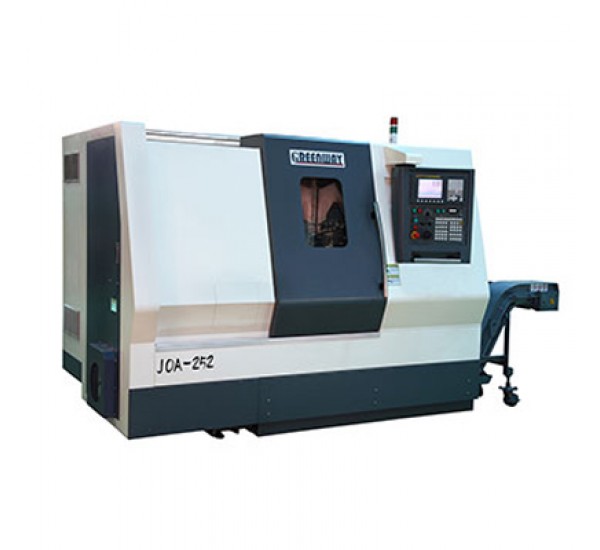

Greenway CNC Lathe Model JOA-252

Main features of the machines

  1. Swing over bed max: 600; 600/900/1200 tailstock travel for choice, which can meet with the requirements of various processing
  2. Sturdy and rigid base with durable guide way
  3. axial ball screw are designed with dual-screw nuts and pre-pull type screw
  4. Stable and high rigidity turret, enhance the cutting capacity to meet with various processing requirements

Greenway CNC Lathe Model JOA-252 Specifications

TURRET TYPE HYDRAULIC SERVO POWER
Swing over cross bed(mm) 600
Over cross slide(mm) 390
Max turning dia(mm) 350
Max machining length(mm) 600(option 900/1200)
Hole through draw bar(mm) 52
Chuck size(inch) 8"
Spindle motor(kw) 11/15
Max. Spindle speed(rpm) 4000
Spindle nose(ASA) A2-6
Spindle bore(mm) 62
Front bearing inside dia(mm) 100
Z axis travel(mm) 600(option 900/1200)
X axis travel(mm) 200 260
Z axis motor(kw) 1.8 2.5
X axis motor (kw) 1.8 2.5
Electrical power supply(kva) 22 30
Z axis rapid feed(m/min) 20
X axis rapid rapid feed(m/min) 20
Guid ways Box way
Turret type Hydraulic Servo power
Number of tools 10T 12T
(rpm)Live tooling speed - 6000
(kw)Live tooling speed - 2.2/3.7
Size of O.D.turning tool(mm) 口25 VDI30.口20
Size of I.D turning tools(mm) Ø40 VDI30.Ø32
Quill dia(mm) 80
Quill stroke(mm) 100
Tailstock travel(mm) 600(option 900/1200)
Quill taper(mm) MT#4
Coolant tank capacity(liter) 190
Coolant flow(L/min) 20
Occupancy (LxWxH)(mm) 4300
4000
3700
×1845×2075
