Automatic Transfer Switch

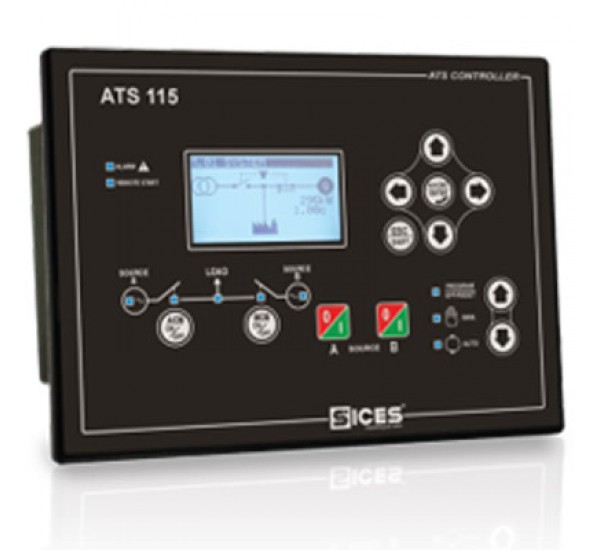

SiCES ATS115 Automatic Transfer Switch

• Multifunctional controller Source A Voltage (mains or genset) L1-N, L2-N, L3-N, L1-L2, L2-L3, L3-L1 True RMS measure.
• Lx-N max. voltage < 300Vac cat. IV Source B Voltage (mains or genset) L1-N, L2-N, L3-N, L1-L2, L2-L3, L3-L1 True RMS measure.
• Lx-N max. voltage < 300Vac cat. IV A or B Currents or towards load L1, L2, L3, N True RMS measure.
• Nominal max. current: /5Aand /1A Overload measurable current : 4 x 5Aac (sinusoidal) A or B Frequency Resolution = 0.1 Hz Accuracy = ± 50ppm, ±35ppm/°C (tipical) Controller Battery Voltage Resolution = 0.1V

Communication

• N. 1 USB Port to set the controller by PC
• ATS115
• N.1 USB Port
• N.1 Serial port RS232 Modbus RTU
• N.1 Insulated serial port RS485 Modbus RTU
• N.1 RJ45 Port as Ethernet interface TCP/IP
• CANBUS J1939 Interface
• Optional:
• N. 1 RS232 Serial Port Modbus RTU
• N. 1 Insulated RS485 Serial Port Modbus RTU
• N. 1 Ethernet RJ45 Port Modbus TCP/IP
• RS232/485/USB Converter
• GSM/GPRS/GPS Modem (REWIND)
• Direct management Modem PSTN/GSM, data call in case of alarm. Status and Commands via SMS.
• Supervisor Software for Windows
• ATS115 and ATS115 are multilingual devices. The available display languages are: English, Italian, French, Russian and Portuguese/Brazilian.
