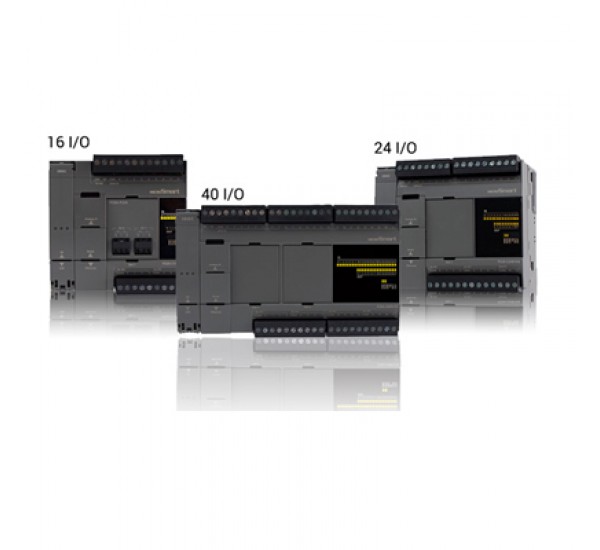

Micro Smart FC6A

MicroSmart FC6A , a powerful PLC with up to 520 digital I/O and 126 analog I/O. The MicroSmart FC6A provides the power of a PAC (programmable automation controller) in a low-cost controller with a small form factor, making it an ideal fit for demanding applications.

Three MicroSmart PLC models are available, each with 24 Vdc or 100-240 Vac input power. The 16 I/O model has 9 inputs, and 7 relay or transistor outputs. The 24 I/O model has 14 inputs, and 10 relay or transistor outputs. The 40 I/O model has 24 inputs, and 16 relay or transistor outputs. Each model also includes an integral 0-10 Vdc analog input. The 16 and 24 I/O models can accommodate one plug-in analog cartridge, and the 40 I/O model can accommodate two plug-in analog cartridges. Each cartridge has two analog I/O points, either two inputs or two outputs.
