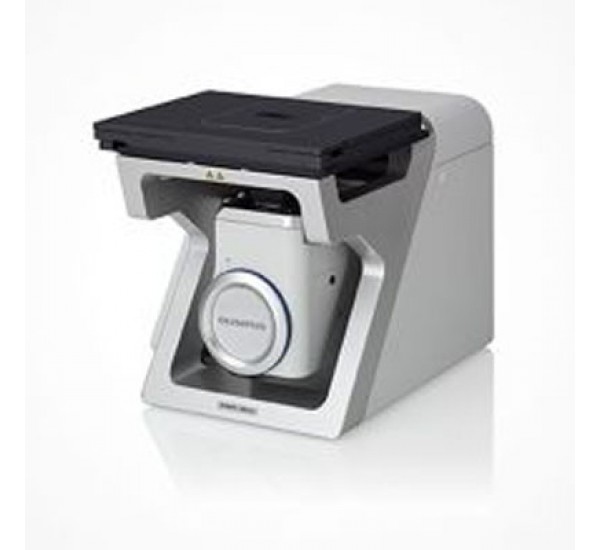

Industrial Microscopes DSX510i

DSX510i Specifications

Main frame Zoom ratio   13.5X optical zoom (0.26X to 3.5X), 30X with digital zoom
  Number of attaching objective lenses   up to 2 pieces
  DSX dedicated objective lens   XLMPLFLN10X, XLMPLFLN40X
  Mountable objective lens UIS2 objective lens MPLFLN1.25X, MPLFLN2.5X, MPLFLN5XBDP, MPLFLN10XBDP,
MPLFLN20XBDP, MPLFLN50XBDP, LMPLFLN10XBD,
LMPLFLN20X, LMPLFLN50X, MPLAPON50X
  Accuracy and repeatability (X-Y plane) Accuracy of magnification ±3%*2
    Repeatability of magnification 3σn-1= ±2%
  Repeatability (Z axis) Repeatability of height -
  Illumination Embedded standard Bright field: LED, Dark field: LED
    Optional illumination High intensity LED*1
  Camera Image sensor 1/1.8 inch, 2.01 megapixels, color CCD (total pixels: 2.10 megapixels)
Total pixels : 1688 (H) x 1248 (V)
Available pixels : 1628 (H) x 1236 (V)
Effective pixels : 1600 (H) x 1200 (V)
    Cooling method Peltier cooling
    Scan mode Progressive scan
    Frame rate 15 fps/27 fps with binning mode
    Image size Normal : 1194 x 1194 (1:1)/1592 x 1194 (4:3)
Fine : 1194 x 1194 (1:1)/1592 x 1194 (4:3)
Super fine : 3594 x 3594 (1:1)/4792 x 3594 (4:3)
    Sensitivity ISO 100/200/400/800/1600 equivalent
  Focusing unit Stroke 35 mm
    Resolution 0.01 μm
  Maximum sample height DSX dedicated objective lens -
    UIS2 objective lens -
Stage Motorized stage Model DSX-IFSSU
    Stroke 50 x 25 mm*3
    Load capacity 1 kg
  Manual stage Model DSX-SFR
    Stroke 50 x 25 mm*3
    Load capacity 1 kg
LCD monitor Size   23” with touch panel and Full HD color LCD monitor
  Resolution   1920 (H) x 1080 (V)
Weight (Main frame, Motorized stage, LCD monitor, Control box, Controller)   Approx. 44.1 kg
Input rating     100-120 V/220-240 V, 300 V A, 50/60 Hz

*1 Cannot be used with the embedded standard LED. *2 Calibration by Olympus or dealer specialists necessary. *3 When the objective lens MPLFLN50XBDP or MPLAPON50X is attached, the stroke is 25 x 25 mm.
