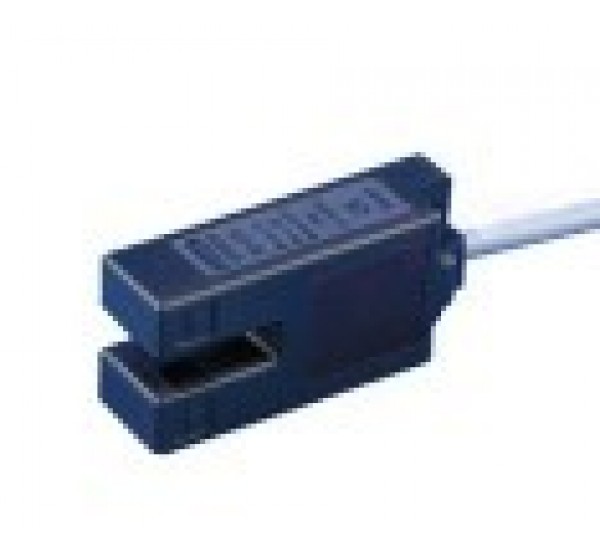

Photo Sensor

Type

Mark Sensor

Label Sensor

Model

SU-07W

SU-07G

SU-07R

MU-07X

Emitter

White Led

Green Led

Red Led

Infrared Led

Operating Voltage

10~30VDC ; Ripple ＜20% of peak to peak

Current Consumption

30mA max.

Sensitivity Adjuster

270° Trimmer

Output Method

NPN & PNP two Output

Output Current

150mA max.

Output Status

Standard: NO Type ; SU-07 –B:NC Type

Protection Circuit

Short Circuit & Polarity Reversed Protection

Sensible Object

Transparent Object

Semi-Transparent

Min. Sensible Object

2.0φ

Response Frequence

1K Hz

Illumination

Lamplight＜5000LUX ; Sunlight＜10,000LUX

Connection Method

4φ/4￠×2M

Housing Material

Intensive ABS

Operating Temp/Hum

-20°C~ +60°C ; 35% ~85%RH

Protection

IP-65
