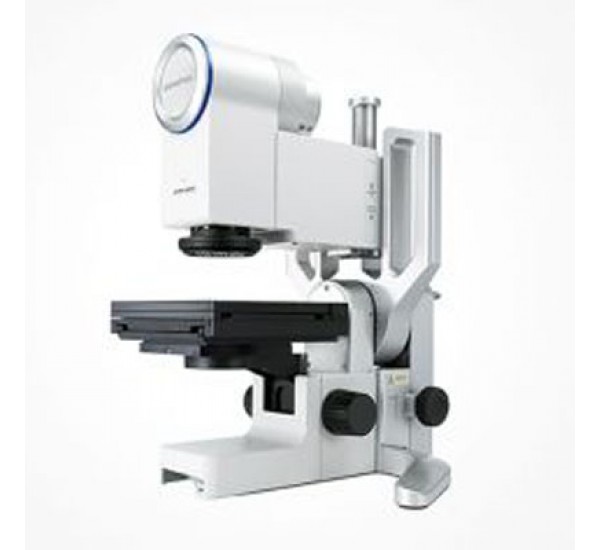

Digital Microscopes DSX110 The DSX110 is a free angle wide zoom microscope with 16x zoom optics for a new generation of inspection and measurements. Employing four segment-LED ring light, this scope ensures high inspection performance. DSX110 Specifications Main frame Zoom ratio Optical zoom DSXPLFL3.6X/1X: 1X to 16X (max) XLMPLFLN10XDSX (with DSX-LEDAD10X): 4X to 16X (max) Digital zoom 17X to 30X Mountable objective lens DSX dedicated objective lens DSXPLFL1X, DSXPLFL3.6X, XLMPLFLN10XDSX+DSX-LEDAD10X Illumination (Objective lens) LED ring light illumination Camera Image sensor 1/1.8 inch, 2.01 megapixels, color CCD (total pixels: 2.10 megapixels) Total pixels : 1688 (H) x 1248 (V) Available pixels : 1628 (H) x 1236 (V) Effective pixels : 1600 (

Call Seller for Quote

Model: DSX110

Main frame	Zoom ratio	Optical zoom	DSXPLFL3.6X/1X: 1X to 16X (max) XLMPLFLN10XDSX (with DSX-LEDAD10X): 4X to 16X (max)
		Digital zoom	17X to 30X
	Mountable objective lens	DSX dedicated objective lens	DSXPLFL1X, DSXPLFL3.6X, XLMPLFLN10XDSX+DSX-LEDAD10X
	Illumination (Objective lens)		LED ring light illumination
	Camera	Image sensor	1/1.8 inch, 2.01 megapixels, color CCD (total pixels: 2.10 megapixels) Total pixels : 1688 (H) x 1248 (V) Available pixels : 1628 (H) x 1236 (V) Effective pixels : 1600 (H) x 1200 (V)
		Cooling method	Peltier cooling
		Scan mode	Progressive scan
		Frame rate	15 fps/27 fps with binning mode
		Image size	Normal : 1194 x 1194 (1:1)/1592 x 1194 (4:3) Fine : 1194 x 1194 (1:1)/1592 x 1194 (4:3) Super fine : 3594 x 3594 (1:1)/4792 x 3594 (4:3)
		Sensitivity	ISO 100/200/400/800/1600 equivalent
	Fine focusing (Motorized)	Stroke	34 mm
		Resolution	0.4 μm
Frame	Coarse focusing (Manual)	Stroke	50 mm
	Maximum sample height	Standard	80 mm*1
		To ensure U-centric operation in tilted operation	50 mm*2
	Tilt mechanism	Type	Manual, lock/release handle
		Tilt angle	Left/Right 45°
Stage	DSX-UFSSU (Motorized)*3	Stroke	100 x 100 mm
		Load capacity	1 kg
	U-SIC4R2 (Manual)	Stroke	100 x 105 mm
		Load capacity	1 kg
LCD monitor	Size		23” with touch panel and Full HD color LCD monitor
	Resolution		1920 (H) x 1080 (V)
Weight	(Main frame, Manual stage, LCD monitor, Control box, Controller)		Approx. 36.5 kg
Input rating			100-120 V/220-240 V, 300 V A, 50/60 Hz
