ปั๊มน้ำอุตสาหกรรม PUMP FLOWSERVE

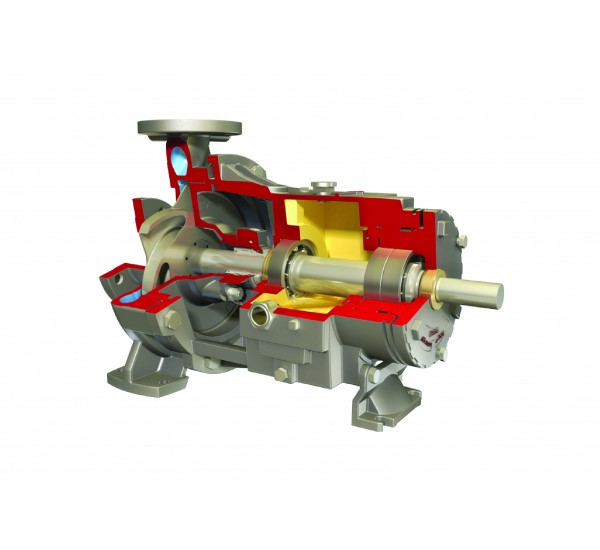

Durco Mark 3 Chemical Process Pumps
Standard ASME(ANSI) B73.1
Standard ISO 2858 &
5199
Operating Parameters
• Flows to 1400 m3/h (6160 gpm)
• Heads to 220 m (720 ft)
• Pressures to 25 bar (365 psi)
• Temperatures from -80°C (-110°F) to 400°C (752°F)
Features
• Heavy-duty casing with integral foot and multi-ribbed discharge flange
• Reverse vane impeller standard; open impeller available
• SealSentry seal chambers
• Accepts multiple seal arrangements
• External micrometer impeller adjustment mechanism
• Standard non-contacting labyrinth seal
• Heavy-duty radial and thrust bearings
• Two-piece bearing housing
• Back pullout design
• IPS Beacon electronic vibration and temperature condition monitor
• Optional ISO 3A power end with lifetime warranty
• CE marked; ATEX compliant; GOST certificate available
