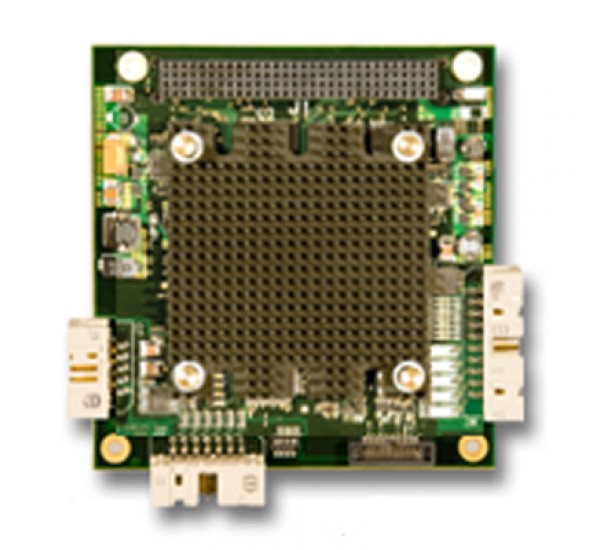

Euresys 1646 Picolo U4 H.264 PC-104

Ruggedized Capture and H.264 Compression Board for 4 Video Inputs with Audio Capability



Features Euresys 1646 Picolo U4 H.264 PC-104

- 4 real-time PAL or NTSC video inputs
- H.264 on-board compression, 100/120 ips at full resolution (25/30 ips x 4)
- 2 simultaneous and independently configurable output streams per video channel:
- One compressed stream
- One raw uncompressed stream
- 4 high-quality audio inputs
- 8 professional I/O lines and watchdog capability
- Ruggedized board supporting: EN50155, EN50155:2007 for Class 3 and EN61373 standards
- Temperature range from -25°C to +85°C
- Sustained vibration and shocks
- High humidity levels
- One selectable video output with cascade capability
- Compact form factor: PCI-104 compliant
