Electric chain hoist

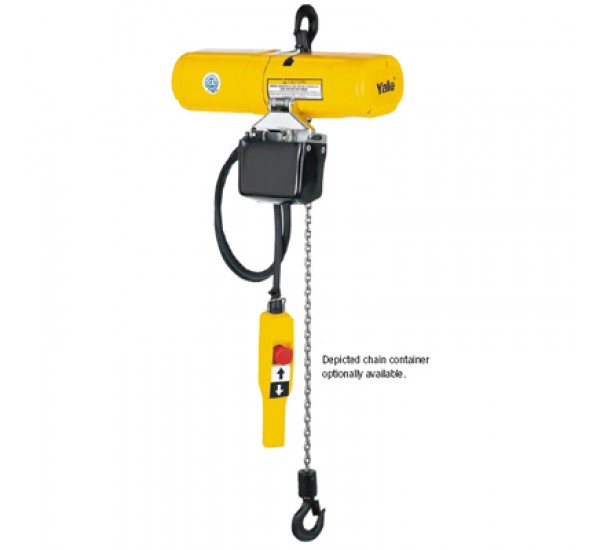

Electric chain hoist model CPS with suspension hook
Capacity 125 - 500 kg

The model CPS is the smallest and lightest within the family of Yale electric chain hoists. Reliability and compact design make it ideal for numerous applications in the construction industry, service companies and many industrial areas for moving small and medium loads.

Features Electric chain hoist model CPS

-  Classification 1 Am. As required the model CPS (with appropriate changes to lifting capacity resp. duty cycle) can also be rated up to higher classifications.
- The standard version comes with direct control.
- Two year warranty (excluding wear parts).
- Thermal overload protection as standard. Duty cycle 30 % ED, resp. 25 % ED.
- Safe hold of the load even in case of electric failure due to electromagnetic, spring pressure brake.
- Standard operating current:
      Euro-voltage 400 V, 3-phase, 50 Hz.
      125 kg capacity also available for
      230 V, single phase, 50 Hz.
- Motor protected to IP 54, against ingression of dust and water.
- Pendant control protected to IP 65, against ingress of dust and spray water.
- The overload protection (slip clutch) avoids overloading and extends the lifetime of the hoist.
- Robust aluminium housing, powder coated.
- Extremely low headroom.
- The standard case hardened and zinc-plated link chain is matched perfectly to the hoist and guarantees smooth and percise chain motion. All requirements of national and international standards and regulations are fulfilled.
- The 10-pocket load sheave ensures smooth running of the chain and minimizes chain wear.
- Forged suspension and load hooks, manufactured from non-aging, high alloy tempering steel, yield under overload instead of breaking.

Option Electric chain hoist model CPS

- Stainless steel load chain (no reduction of working load limit).
- Robust chain container.
- Festooned cable systems.
- Low voltage control 48 V.
- Manual and powered trolleys with clevis or shackle to fit top hook suspended chain hoists.
