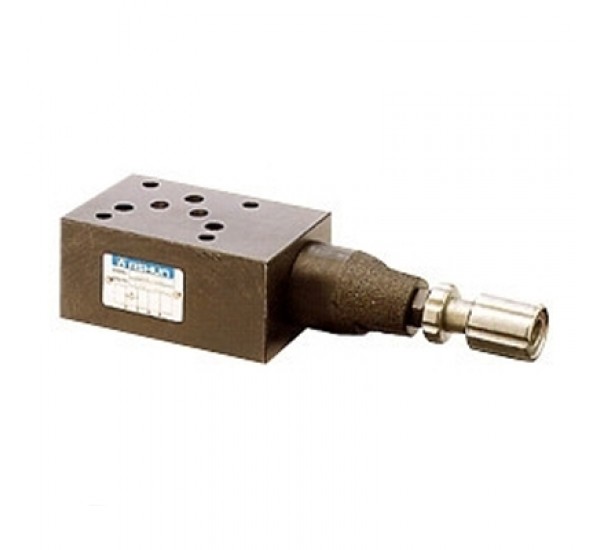

MODULAR RELIEF VALVES Brand ASHUN

ASHUN - MODULAR RELIEF VALVES MRV Series FEATURES MODULAR RELIEF VALVES - MRV series modular relief valves can be used to efficiently restrict the "P" port, "A" port, or "B" port or the pressure from "A" and "B" port to the oil tank. - Casting iron valve bodies are provided strength and durability for longer life. - Internal hardened steel components also provide durable life. - Three standard pressure setting options are available. - Two pressure adjustment options are:hex. screw or knob.   MODEL MAX.OPERATING  PRESSURE (kgf/cm ²) PRESSURE ADJ.RANGE (kgf/cm²) MAX.FLOW /min WEIGHT (kg) MRV-02P 250 B:7-70 C:35140 H:70210 02:40 1.6 MRV-02A MRV-02B MRV-02W MRV-03P 03:80 3.5 MRV-03A MRV-03B MRV-03
