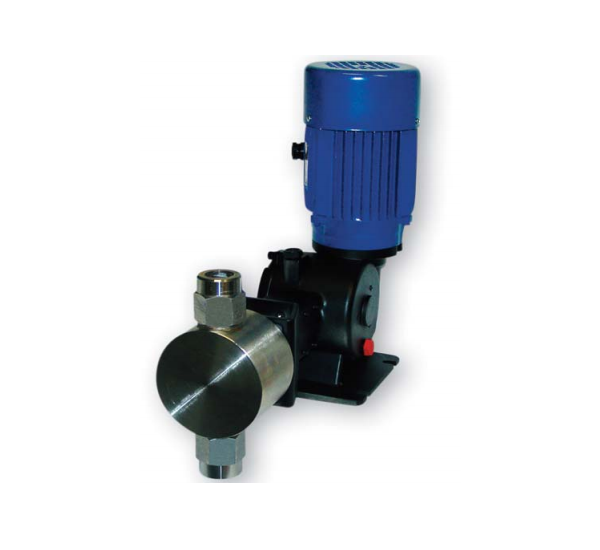

Plunger piston Metering pumps

PS2 pumps are plunger piston metering pumps featuring a spring return mechanism in an aluminium housing.

Call Seller for Quote

Model: PS2

Company Information

Name : บริษัท ประเสริฐ วอเตอร์พลัส จำกัด

Contact : นายภคพล ประเสริฐ

Tel : Please login.

PS2 pumps are plunger piston metering pumps featuring a spring return mechanism in an aluminium housing.

FEATURES

Capacity: from 40 to 1000 L/h

Max pressure: 20 BAR

Stroke rate: 58 • 78 • 116 strokes/minute

Piston diameter: from 25 to 89 mm

Motor: standard 0,25 • 0,37 • 0,55 • 0,75 Kw (IP 55)

Stroke length: 25 mm

LIQUID END

SS 316 or PVC pump head (standard).

SS 316 OR CERAMIC PISTON

The material in contact with the liquid to be dosed

are listed in the “pump head materials” table (special materials may be supplied on request).

MAX DOSAGE TEMPERATURE

- SS 316 pump head: 90° C

- PVC pump head: 40° C

FLOW RATE ADJUSTMENT

Every pump can be equipped with an electric actuator which accepts a 4-20 mA.
