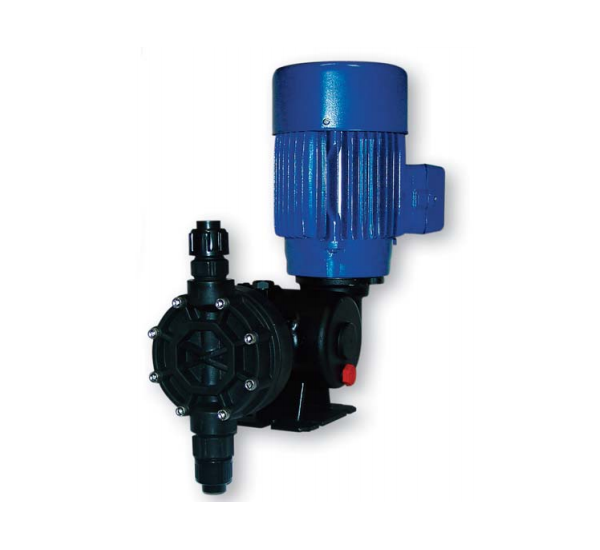

Mechanical Diaphragm Metering Pumps

MS1 pumps are mechanical diaphragm metering pumps featuring a spring return mechanism in an aluminium housing.

Call Seller for Quote

Model: MS1

Company Information

Name : บริษัท ประเสริฐ วอเตอร์พลัส จำกัด

Contact : นายภคพล ประเสริฐ

Tel : Please login.

MS1 pumps are mechanical diaphragm metering pumps featuring a spring return mechanism in an aluminium housing.

FEATURES

Capacity: from 5,5 to 460 L/h

Max pressure: 10 BAR

Stroke rate: 58 • 78 • 116 strokes/minute

Diaphragm diameter: from 65 to 165 mm

Motor: standard 0,18 • 0,25 • 0,37 Kw (IP 55)

Stroke length: 2 mm • 4 mm • 6 mm

LIQUID END

SS 316 or PP liquid end (standard).

PTFE DIAPHRAGM

The material in contact with the liquid to be dosed are listed in the “pump

head materials” table (special materials may be supplied on request).

MAX DOSAGE TEMPERATURE

- SS 316 pump head: 90° C

- PP pump head: 40° C

FLOW RATE ADJUSTMENT

Every pump can be equipped with an electric actuator which accepts a

4-20 mA.
