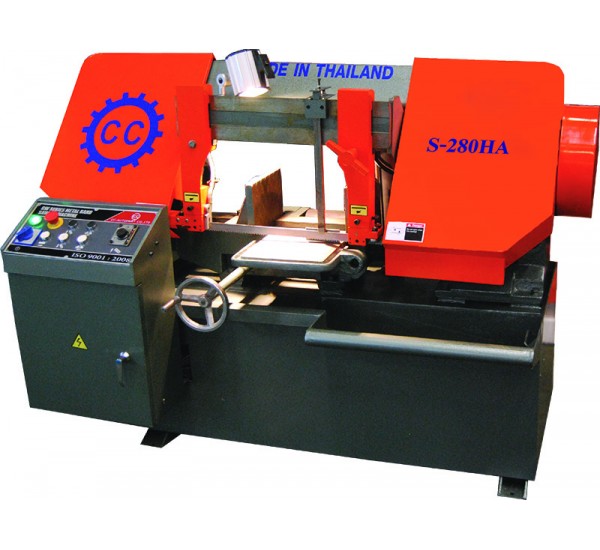

Band Saw Machine

Band Saw Machine

Hydraulic control of the feeding speed of sawing/cutting, Variable cutting speed. Hydraulic control of the pencers, clamping and semi-auto clamping. Adopt worm wheel drive to saw/cut. Using anti-friction bearing and hard alloy for guiding. Band saw Overload protection device.
138,000฿
Model: S-280HA
Company Information
Name : บริษัท ซี.ซี. ออโตพาร์ท จำกัด
Contact : ลัดดาวัลย์ ชดช้อย
Tel : Please login.
Main features of the machines
Hydraulic control of the feeding speed of sawing/cutting, Variable cutting speed.
Hydraulic control of the pencers, clamping and semi-auto clamping.
Adopt worm wheel drive to saw/cut. Using anti-friction bearing and hard alloy for guiding. Band saw Overload protection device.

Specification
Maximum Cutting Capacity

- Round 280 mm

- Square 220x400 mm

Saw blade
- Speed 22/41/59/85m/min
- Size 3505x27x0.9mm

Tension
- Manual

Guide
- Tings Carbide

Clearing
- Brush

Power Supply
- 3 Phase/380V/50-60Hz

Motor Output
- 2.2 Kw

Hydraulic
- 0.55 Kw

Coolant
- 0.04 Kw

Tank Capacity
- Hydraulic oil 45L
- Coolant 35L

Feeding Mode
- Manual

Vise Control
- Hydraulic

N.W/G.W
- 680KGS/740KGS

Packing Size (L x W x H)
- 1,800x1,100x1,300
